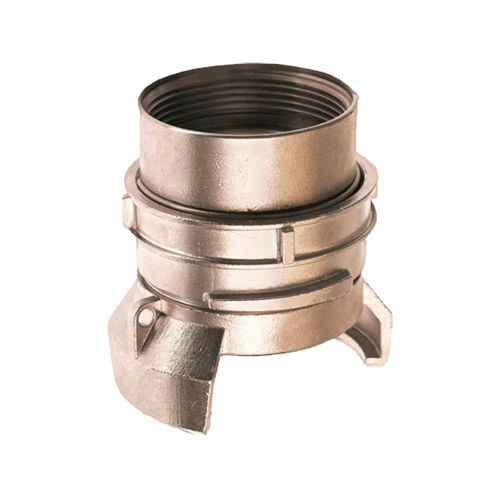

Threaded coupling C740500

stainless steelfemale

Product name
Fixed coupling with female thread – with lock

Category
Couplings / Guillemin

Materials and references
Aluminium
Item | Code | DN (mm) | Int. Ø (in.)
C740500 | 4050 | 20 | ¾”
C740510 | 4051 | 25 | 1”
C740520 | 4052 | 32 | 1 ¼”
C740530 | 4053 | 40 | 1 ½”
C740540 | 4054 | 50 | 2”
C740550 | 4055 | 65 | 2 ½”
C740560 | 4056 | 80 | 3”
C740570 | 4057 | 100 | 4”
C740575 | 4041 | 150 | 6”

Stainless Steel
Item | Code | DN (mm) | Int. Ø (in.)
C749665 | 4051/2 | 25 | 1”
C740522 | 4052/2 | 32 | 1 ¼”
C740532 | 4053/2 | 40 | 1 ½”
C740542 | 4054/2 | 50 | 2”
C740555 | 4055/2 | 65 | 2 ½”
C740562 | 4056/2 | 80 | 3”
C740572 | 4057/2 | 100 | 4”

Polypropylene
Item | Code | DN (mm) | Int. Ø (in.)
C740531 | 4053/3 | 40 | 1 ½”
C740544 | 4054/3 | 50 | 2”
C740565 | – | 80 | 2”
C740564 | 4056/3 | 80 | 3”

Notes
Product images available on the page show the coupling with lock in the product card.

Technical specifications

• Brand: TIPSA
• Product type: Fixed coupling with female thread with locking mechanism (Guillemin style)
• Available materials: Aluminium, Stainless Steel, Polypropylene
• Available nominal diameters (DN) across materials: 20, 25, 32, 40, 50, 65, 80, 100, 150 mm (see tables above for mapping to internal Ø and codes)
• Internal diameters (inches) provided per reference (examples): ¾”, 1”, 1 ¼”, 1 ½”, 2”, 2 ½”, 3”, 4”, 6”
• Multiple catalogue item codes provided per material (see tables)
• Category / Series: Couplings — Guillemin
