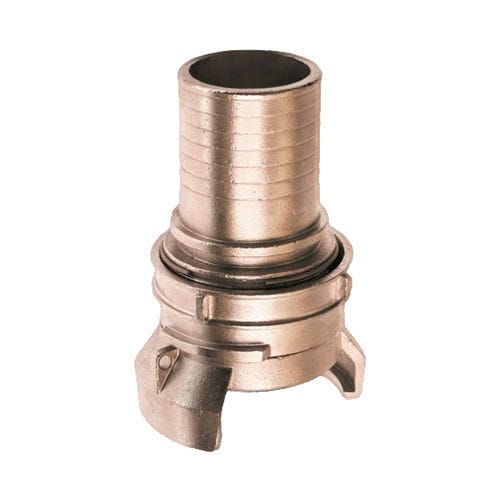

Stainless steel coupling C740250

Product
Hose coupling with lock — C7402 series

Aluminium
Item | Code | DN (mm) | P/M
C740250 | 4025 | 20 | 25
C740260 | 4026 | 25 | 30
C740270 | 4027 | 32 | 35
C740280 | 4028 | 40 | 40
C740290 | 4029 | 40 | 45
C740300 | 4030 | 50 | 50
C740310 | 4031 | 50 | 55
C749725 | 4038 | 65 | 65
C740320 | 4032 | 65 | 70
C740330 | 4033 | 80 | 75
C740340 | 4034 | 80 | 80
C740350 | 4035 | 80 | 90
C740360 | 4036 | 100 | 100
– | 4039 | 100 | 105
C740370 | 4037 | 100 | 110
C740380 | 4040 | 150 | 150

Stainless Steel
Item | Code | DN (mm) | P/M
C740254 | 4025/2 | 20 | 25
C749667 | 4026/2 | 25 | 30
C749666 | 4027/2 | 32 | 35
C740282 | 4028/2 | 40 | 40
C740292 | 4029/2 | 40 | 45
C740302 | 4030/2 | 50 | 50
C740322 | 4032/2 | 65 | 70
C740332 | 4033/2 | 80 | 75
C740342 | 4034/2 | 80 | 80
C740352 | 4035/2 | 80 | 90
C740362 | 4036/2 | 100 | 100
C740372 | 4037/2 | 100 | 110

Polypropylene
Item | Code | DN (mm) | Ø Hose (mm)
C740285 | 4028/3 | 40 | 40
C740303 | 4030/3 | 50 | 50
– | 4031/3 | 50 | 55
C749787 | 4033/3 | 80 | 75
C740351 | 4035/3 | 80 | 90

Characteristics / Technical specifications

• Product name: Hose coupling with lock
• Brand: TIPSA | Kuriyama
• Available materials: Aluminium, Stainless Steel, Polypropylene
• Available nominal diameters (DN): 20 mm up to 150 mm depending on material and code
• Available codes / item references: see tables above (e.g. C740250, C740260, C740270, ...)
• Hose connection / P or M values as indicated per table
• Polypropylene entries specify Ø Hose where indicated
• Product presented with multiple material variants and a wide range of sizes for irrigation / coupling applications
