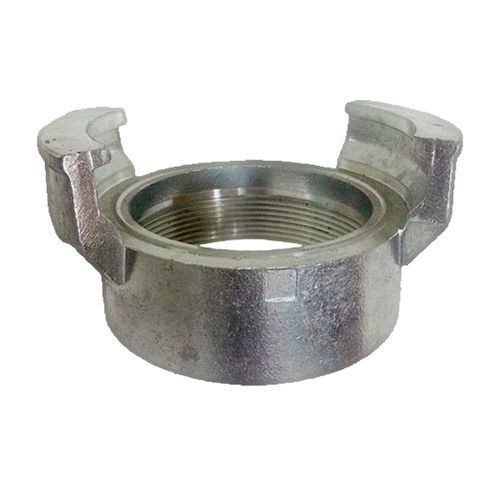

Threaded coupling C740600

female

Product
Fixed coupling Guillemin with female thread – without lock

Materials and references
Aluminium
Item | Code | DN (mm) | Int. Ø (in.)
C740600 | 4060 | 20 | ¾”
C740605 | 4061 | 25 | 1”
C740620 | 4062 | 32 | 1 ¼”
C740630 | 4063 | 40 | 1 ½”
C740640 | 4064 | 50 | 2”
C740650 | 4065 | 65 | 2 ½”
C740660 | 4066 | 80 | 3”
C740670 | 4067 | 100 | 4”

Stainless Steel
Item | Code | DN (mm) | Int. Ø (in.)
C740603 | 4060/2 | 20 | ¾”
C740551 | 4061/2 | 25 | 1”
C740563 | 4062/2 | 32 | 1 ¼”
C740632 | 4063/2 | 40 | 1 ½”
C740642 | 4064/2 | 50 | 2”
C749759 | 4065/2 | 65 | 2 ½”
C740662 | 4066/2 | 80 | 3”
C740672 | 4067/2 | 100 | 4”

Characteristics / technical specifications

• Product type: Fixed coupling Guillemin with female thread – without lock
• Materials available: Aluminium; Stainless Steel
• Available nominal diameters (DN): 20, 25, 32, 40, 50, 65, 80, 100 mm
• Internal diameters (inches): ¾”, 1”, 1 ¼”, 1 ½”, 2”, 2 ½”, 3”, 4”
• Aluminium item codes: C740600, C740605, C740620, C740630, C740640, C740650, C740660, C740670 (codes 4060–4067)
• Stainless steel item codes: C740603, C740551, C740563, C740632, C740642, C749759, C740662, C740672 (codes 4060/2–4067/2)
