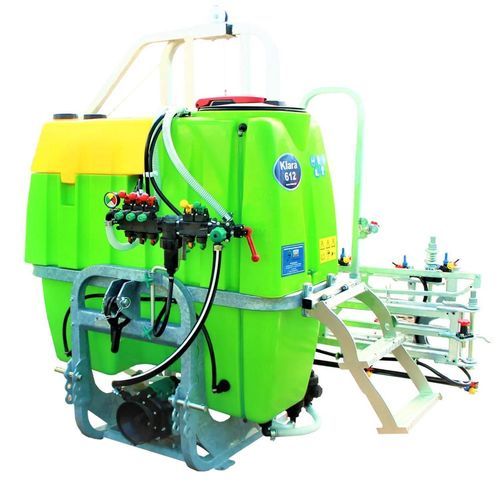

Mounted sprayer KLARA 600-3

hydraulicmanualfolding arms

Standard equipment: - 600 litre tank made of LLD-PE polyethylene with liquid level indicator - Tank for clean water for washing the system - Clean water tank with tap (for hand washing) - Tolveri PU-3/130 pump – 12 m boom - Tolveri PU-3/140 pump – 14m, 15m, 16m, 18m - Distributor Gran 3 (boom 12m) or Gran 5 (14m ≤) - Gravitational field beam stabilization - Single 0.3 spray nozzle - Frame and boom are hot-dip galvanised for mechanical durability and corrosion resistance - Chemical dilution tank in the filling sieve - Stairs for easy access to main tank inlet - 2 x Anti-foaming hydraulic mixer - Set of filter wrenches Optional equipment: - Distributor Duro 3 (12 m) or Duro 5 (14 m ≤) - Distributor Fermo 3 (12 m) or Fermo 5 (14 m ≤) with pressure compensation function - Control Panel 1 (ON/OFF) - Control Panel 2 (ON/OFF, pressure adjustment+/-) - Control Panel 5 (ON/OFF, pressure adjustment +/-, control over three sections of the field boom) - Control Panel 7 (ON/OFF, pressure adjustment+/-, control over five sections of the field boom) - Computer Alfa 100 - Tolveri PU-3/140 pump – beam 12m - Side/additional dilution tank with bottle flushing option - Triple rotary heads and special sprayers - Hydraulic boom stabilization - Hydraulic boom height adjustment - Linear filters - Articulated Telescopic Roller - Tank filling system - System for liquid suction to the tank - Working lighting - Route lights - Foam marker Model specifications: - Klara 612-3: Length 1300 mm, Width 2650 mm, Height 2100 mm, Weight 250 kg - Klara 614-3: Length 1400 mm, Width 2850 mm, Height 2100 mm, Weight 345 kg - Klara 615-3: Length 1400 mm, Width 2850 mm, Height 2100 mm, Weight 355 kg - Klara 616-3: Length 1400 mm, Width 2850 mm, Height 2100 mm, Weight 368 kg - Klara 618-3: Length 1400 mm, Width 2900 mm, Height 2100 mm, Weight 445 kg Note: The given weights and dimensions are approximate. Technical specifications / features: - Model: KLARA 600-3 - Tank capacity: 600 litres - Material: LLD-PE polyethylene - Available boom lengths: 12m, 14m, 15m, 16m, 18m - Hot-dip galvanised frame and boom - Anti-foaming hydraulic mixer - Optional computer and control panels - Optional hydraulic boom stabilization and height adjustment - Optional lighting and foam marker
