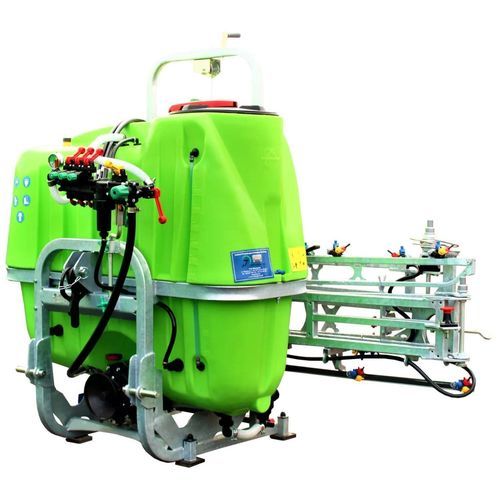

Mounted sprayer KLARA 600

hydraulicfolding arms

Standard equipment: - 600 litre tank made of LLD-PE polyethylene with liquid level indicator - Clean water tank with tap (for hand washing) - Tolveri PU-3/130 pump – 12m boom - Tolveri PU-3/140 pump – 14m, 15m, 16m, 18m - Distributor Gran 3 (12 m boom) or Gran 5 (14 m and above) - Gravitational boom stabilization - Single 0.3 spray nozzle - Frame and boom are hot-dip galvanised for mechanical durability and corrosion resistance - Chemical dilution tank in the filling sieve - 2 x Anti-foaming hydraulic mixer - Set of filter wrenches Optional equipment: - Distributor Duro 3 (12 m) or Duro 5 (14 m and above) - Distributor Fermo 3 (12 m) or Fermo 5 (14 m and above) with pressure compensation function - Control Panel 1 (ON/OFF) - Control Panel 2 (ON/OFF, pressure adjustment +/-) - Control Panel 5 (ON/OFF, pressure adjustment +/-, control over three sections of the field boom) - Control Panel 7 (ON/OFF, pressure adjustment +/-, control over five sections of the field boom) - Computer Alfa 100 - Tolveri PU-3/140 pump – boom 12m - Side/additional dilution tank with bottle flushing option - Triple rotary heads and special sprayers - Hydraulic boom stabilization - Hydraulic boom height adjustment - Linear filters - Articulated Telescopic Roller - Tank filling system - System for liquid suction to the tank - Working lighting - Route lights - Foam marker Model specifications: - Klara 612: Length 1250 mm, Width 2650 mm, Height 1800 mm, Weight 250 kg - Klara 614: Length 1400 mm, Width 2850 mm, Height 2100 mm, Weight 345 kg - Klara 615: Length 1400 mm, Width 2850 mm, Height 2100 mm, Weight 355 kg - Klara 616: Length 1400 mm, Width 2850 mm, Height 2100 mm, Weight 368 kg - Klara 618: Length 1400 mm, Width 2900 mm, Height 2100 mm, Weight 445 kg Weight and dimensions given are approximate only. Technical characteristics / specifications: - Model: KLARA 600 - Tank capacity: 600 litres - Material: LLD-PE polyethylene - Pumps: Tolveri PU-3/130 (12m), Tolveri PU-3/140 (14m, 15m, 16m, 18m) - Distributor: Gran 3 (12m), Gran 5 (14m and above), optional Duro/Fermo series - Boom width: 12m, 14m, 15m, 16m, 18m (depending on configuration) - Frame and boom: Hot-dip galvanised - Anti-foaming hydraulic mixer: 2x - Spray nozzle: Single 0.3 - Optional: Computer Alfa 100, hydraulic controls, lighting, foam marker, etc.
