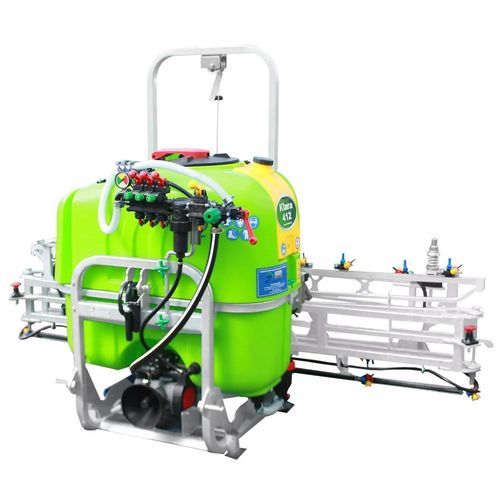

Mounted sprayer KLARA 400

hydraulic

Standard equipment: - 400 litre tank made of LLD-PE polyethylene with liquid level indicator - Tolveri PU-2/120 pump – 8m, 10m, 12m boom - Tolveri PU-3/140 pump – 15 m boom - Distributor Gran 3 – 8m, 10m, 12m or Gran 5 -15 m - Boom gravitational stabilization – boom 12m, 15m - Clean water tank with tap (for hand washing) - Single 0.3 spray nozzle - Frame and boom are hot-dip galvanised for mechanical durability and corrosion resistance - Chemical dilution tank in the filling sieve - Anti-foaming hydraulic mixer - Set of filter wrenches Optional equipment: - Distributor Duro 3 (8, 10, 12m) or Duro 5 (15 m) - Distributor Fermo 3 (8, 10, 12m) or Fermo 5 (15 m) with pressure compensation function – constant pressure regardless of number of sprayer sections in operation - Control Panel 1 (ON/OFF) - Control Panel 2 (ON/OFF, pressure adjustment+/-) - Control Panel 5 (ON/OFF, pressure adjustment+/-, control over three sections of the field boom) - Control Panel 7 (ON/OFF, pressure adjustment+/-, control over five sections of the field boom) - Computer Alfa 100 - Pump Tolveri PU-3/140 pump – beam 12 m - Side/additional dilution tank with bottle flushing option - Triple rotary heads and special nozzles - Hydraulic boom stabilization (12, 15 m) - Hydraulic boom height adjustment – 15m boom - Articulated Telescopic Roller - Linear filters - Tank filling system - System for liquid suction to the tank - Working lighting - Route lights Model specifications: - Klara 408: Length 1100 mm, Width 2100 mm, Height 1800 mm, Weight 168 kg - Klara 410: Length 1150 mm, Width 2100 mm, Height 1800 mm, Weight 171 kg - Klara 412: Length 1250 mm, Width 2650 mm, Height 1800 mm, Weight 215 kg - Klara 415: Length 1300 mm, Width 2850 mm, Height 1950 mm, Weight 285 kg Weight and dimensions given are approximate only. Technical characteristics / specifications: - Model: KLARA 400 - Tank capacity: 400 litres - Material: LLD-PE polyethylene - Pumps: Tolveri PU-2/120 (8m, 10m, 12m boom), Tolveri PU-3/140 (15m boom) - Distributor: Gran 3 (8m, 10m, 12m), Gran 5 (15m) - Boom stabilization: gravitational (12m, 15m), optional hydraulic - Frame and boom: hot-dip galvanised - Spray nozzle: Single 0.3 - Anti-foaming hydraulic mixer - Optional: Duro/Fermo distributors, Alfa 100 computer, articulated telescopic roller, working/route lights, hydraulic controls
