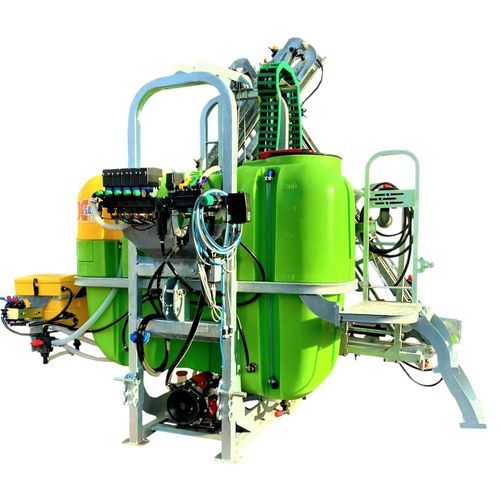

Mounted sprayer XSARA 800

hydraulic

Available boom widths: 12m, 15m Standard equipment: - 800 litre tank made of LLD-PE polyethylene with liquid level indicator - Hydraulic boom extension, lifting and levelling - Hydraulic boom stabilization - Tolveri PU-3/140 pump - Fermo 5 distributor – constant pressure - Controller Control Panel 1 (ON/OFF) - Hydro Panel – controlling the boom from tractor cabin - Clean water tank with tap (for hand washing) - Tank for water for washing the system - Triple rotary heads with nozzles - Tank filling system - Frame and boom are hot-dip galvanised for mechanical durability and corrosion resistance - Chemical diluter in inlet sieve - Platform with stairs for easy access to the main tank inlet - Linear filters - 2 x Anti-foaming hydraulic mixer - Set of filter wrenches Optional equipment: - Fermo Distributor with pressure compensation function - Control Panel 2 (ON/OFF, pressure adjustment+/-) - Control Panel 7 (ON/OFF, pressure adjustment+/-, control over five sections of the field boom) - Computer Alfa 200 - Side/additional dilution tank with bottle flushing option - Articulated Telescopic Roller - System for liquid suction to the tank - Working lighting - Route lights - Foam marker Model specifications: - Xsara 812: Length 1600 mm, Width 2800 mm, Height 2650 mm, Weight 666 kg - Xsara 815: Length 1600 mm, Width 2800 mm, Height 2500 mm, Weight 736 kg Weight and dimensions given are approximate only. Technical specifications / Features: - Model: XSARA 800 - Available boom widths: 12m, 15m - Tank capacity: 800 litres - Material: LLD-PE polyethylene - Hydraulic boom extension, lifting, levelling and stabilization - Hot-dip galvanised frame and boom - Multiple control panel options - Optional computer and lighting systems - Approximate dimensions (mm): Length 1600, Width 2800, Height 2650/2500 - Approximate weight (kg): 666/736
