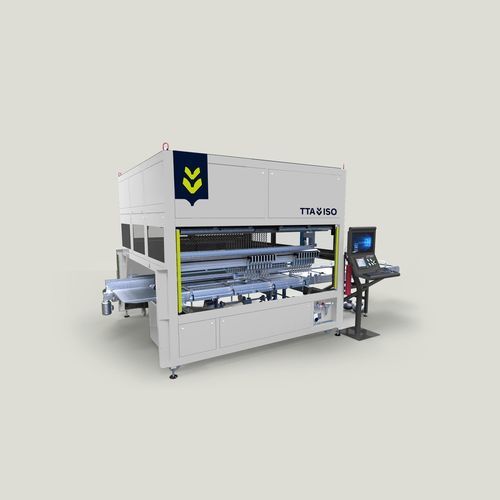

Nursery plants transplanter FlexPlanter-S

automaticbelt-driven

Short description
The FlexPlanter-S is an automatic transplanter that integrates gentle extraction and image-based selection into a single operation, delivering plugs into destination trays with selectable fill options.

Description
The FlexPlanter-S extracts plants from donor trays using in-house plant grippers assisted by a pusher-pin system from below, providing clear separation for quality assessment. The integrated imaging system approves plants automatically for transplanting; rejected plants and empty plugs are conveyed to a waste belt. Destination trays can be output 100% filled or with deliberate voids to allow operator correction and increase throughput. The control interface is intuitive and includes built-in self-diagnosis. The FlexPlanter-S is designed for growers propagating young plants who want to reduce labor while improving uniformity and product quality.

Key features

• In-house plant grippers for gentle extraction and separation
• Pusher-pin system assisting extraction from below
• Integrated imaging system for automatic selection and approval
• Waste belt for rejected plants and empty plugs
• Destination tray output options: 100% filled or with voids for operator correction
• User interface with built-in self-diagnosis

Technical specifications

• Operators: 1
• Plug diameter: 9 - 60 mm
• Capacity per hour: 3,000 - 30,000 plugs
