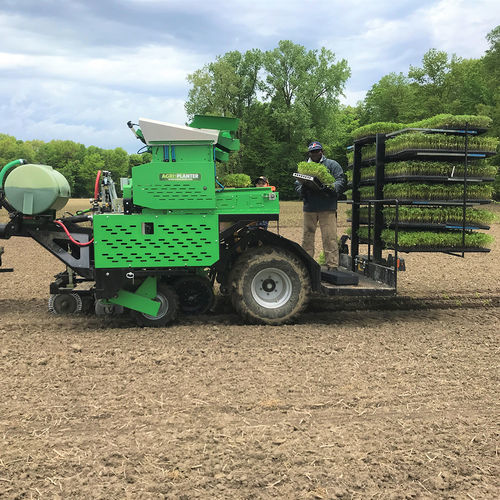

Vegetable transplanter 2 SP

automatic2-rowmounted

Overview
Agriplant is a Belgian family business involved in the design, production and sale of automatic vegetable planting machines for professional use.

Options

• Water tank: 400 L
• Micro-granulate hopper: 16 L
• Fertilizer tank: 160 L
• Drip tape
• Pressure rollers

General info
Number of rows: 2
Distance between rows: 32 ~ 120 cm / 13 ~ 47 inch
Distance in the row: 10 ~ 60 cm / 4 ~ 23 inch
Wheel track: 140-180 cm / 55 ~ 71 inch
Type: mounted – trailed
Capacity: Up to 26,000 plants/h (*)
(*) This is a theoretical value.

Soil preparation
Flat field: Yes
Beds: Yes

Dimensions
Length (without rear platform) - mounted: 280 cm / 110 inch
Length (without rear platform) - trailed: 452 cm / 177 inch
Width: 250 cm / 98 inch
Height: 240 cm / 94 inch
Weight: 2440 kg

Hydraulics
Robot: Self-sufficient (35 bar)
Chassis: Self-sufficient (165 bar)

Electricity
Robot: Self-sufficient (24V)
Chassis: Self-sufficient (24V)

Transmission
PTO: 540 RPM

Robot
Adjustable for different trays: Yes

Sensorhead
Selector for empty plugs: Yes
Alarm for missing plants: Yes

Planting Element
Press wheels: 580x80 – 410x80 – 410x60 – 280x60 (double wheels)
Adjustment of plant discs: Mechanical

Rear axle system
Number of axes: 1 or 2 (adjustable)
Wheels: Different wheel options available

Homologation
Homologation: No

Technical specifications

• Number of rows: 2
• Distance between rows: 32 ~ 120 cm / 13 ~ 47 inch
• Distance in the row: 10 ~ 60 cm / 4 ~ 23 inch
• Wheel track: 140-180 cm / 55 ~ 71 inch
• Type: mounted – trailed
• Capacity: Up to 26,000 plants/h (theoretical)
• Soil: Flat field - Yes; Beds - Yes
• Length (mounted): 280 cm / 110 inch
• Length (trailed): 452 cm / 177 inch
• Width: 250 cm / 98 inch
• Height: 240 cm / 94 inch
• Weight: 2440 kg
• Hydraulics: Robot 35 bar; Chassis 165 bar
• Electricity: Robot 24V; Chassis 24V
• Transmission: PTO 540 RPM
• Robot: Adjustable for different trays
• Sensorhead: Selector for empty plugs; Alarm for missing plants
• Planting element: Press wheels 580x80 – 410x80 – 410x60 – 280x60 (double wheels); Mechanical adjustment of plant discs
• Rear axle: 1 or 2 axes (adjustable); Multiple wheel options
• Homologation: No
