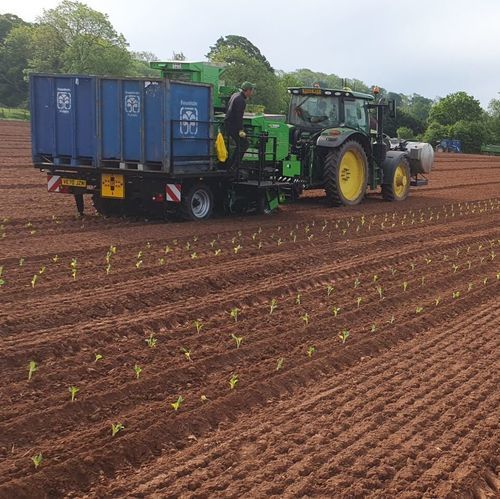

Onion transplanter 3SP-A

automatic3-rowtowed

General information
Number of rows: 3
Row spacing: 45 ~ 75 cm / 19 ~ 29 inch
In-row spacing: 10 ~ 60 cm / 4 ~ 23 inch
Wheeltrack: 180 ~ 300 cm / 70 ~ 118 inch
Type: mounted – trailed
Capacity: Up to 36.000 pl/h (*)

Soil preparation
Flat field: Yes
Beds: Yes

Dimensions
Length - Mounted (with rear platform): 430 cm / 169 inch
Length - Trailed (with rear platform): 630 cm / 248 inch
Width: 300 cm / 118 inch
Height: 330 cm / 129 inch
Weight: 3950 kg

Hydraulics
Robot: Self-sufficient (35 bar)
Chassis: Tractor (165 bar)
Oil flow tractor: 30 L/min (7.5 GPM)

Electricity
Robot: Self-sufficient (24V)
Chassis: Self-sufficient (24V)

Transmission
PTO: 540 RPM (standard / 1000 RPM optional)

Robot
Adjustable for different trays: Yes

Sensorhead
Selector empty plugs: Yes
Alarm no plants: Yes

Planting element
Press wheels: 580x80 – 410x80 – 410x60
Adjusting plant discs: Mechanical

Rear axle system
Number of axes: 1
Wheels: Different wheels possible / tracks

Homologation
Homologation: No

Options

• Micro-granulate — 16 L
• Fertilizer — 160 L
• Rotary tiller
• Wheel mark eradicators

Notes
(*) This is a theoretical value. The information is subject to change.

Technical specifications

• Model: 3SP-A
• Number of rows: 3
• Row spacing: 45 ~ 75 cm / 19 ~ 29 inch
• In-row spacing: 10 ~ 60 cm / 4 ~ 23 inch
• Wheeltrack: 180 ~ 300 cm / 70 ~ 118 inch
• Type: mounted – trailed
• Capacity: Up to 36.000 pl/h (theoretical)
• Length (Mounted, with rear platform): 430 cm
• Length (Trailed, with rear platform): 630 cm
• Width: 300 cm
• Height: 330 cm
• Weight: 3950 kg
• Hydraulics (Robot): Self-sufficient 35 bar
• Hydraulics (Chassis): Tractor 165 bar
• Oil flow tractor: 30 L/min (7.5 GPM)
• Electricity: 24V self-sufficient on robot and chassis
• PTO: 540 RPM (1000 RPM optional)
• Robot adjustable for different trays: Yes
• Sensorhead: Selector empty plugs and alarm for missing plants
• Press wheels: 580x80, 410x80, 410x60
• Adjusting plant discs: Mechanical
• Rear axle system: 1 axis; different wheels/tracks possible
• Homologation: No
