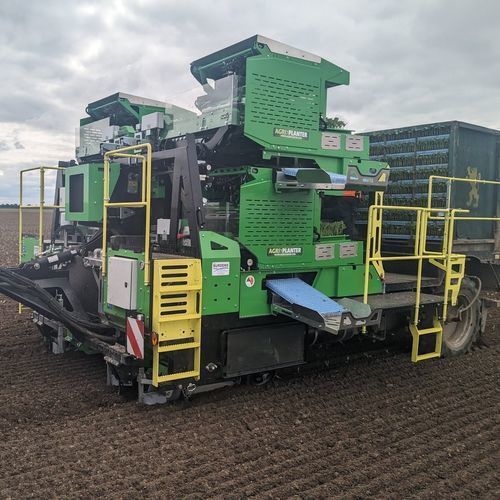

Vegetable transplanter 5 SP-A

automatic5-rowstowed

Overview
Agriplant automatic vegetable transplanter model 5 SP-A designed for high-capacity, continuous planting in flat fields and raised beds. Electric in-row spacing adjustment and tray-compatible robot make it suitable for diverse propagation systems.

General info
Rows: 5
Row spacing: 60 cm (24 in)
In-row spacing: 10–60 cm (4–23 in), electrically adjustable
Wheel track: 305 cm (120 in)
Type: Trailed machine
Theoretical capacity: up to 60,000 plants/hour (*)

Soil preparation
Suitable for flat fields: Yes
Suitable for raised beds: Yes

Dimensions
Length (with rear platform): 750 cm (295 in)
Width: 350 cm (137 in)
Height: 330 cm (130 in)
Weight: 7,520 kg

Hydraulics
Robot hydraulics: self-sufficient (35 bar)
Chassis hydraulics: self-sufficient (165 bar)
Hydraulic flow required from tractor: 30–40 L/min (7.5–10 GPM)

Electricity
Robot: self-sufficient (24 V)
Chassis: self-sufficient (24 V)

Transmission
PTO speed: 1000 RPM

Robot
Adjustable for different trays: Yes (tray compatibility for multiple formats)

Sensorhead
Empty-plug selector: Yes
No-plant alarm: Yes
Plant spacing control: electrically adjustable

Planting element
Press wheels: 410x80 and 410x60
Plant disc adjustment: mechanical height adjustment

Rear axle system
Number of axes: 1
Wheels: tracks, width 30 cm (11 in)
Rear axle steerable: Yes

Homologation
Homologation: No

Note
(*) The capacity value is theoretical and depends on crop, tray quality and operating conditions.

Technical specifications

• Model: 5 SP-A
• Rows: 5
• Row spacing: 60 cm / 24 in
• In-row spacing: 10–60 cm / 4–23 in (electrically adjustable)
• Wheel track: 305 cm / 120 in
• Type: Trailed machine
• Theoretical capacity: up to 60,000 plants/hour
• Suitable soil: flat fields and raised beds
• Overall length (with rear platform): 750 cm
• Overall width: 350 cm
• Overall height: 330 cm
• Weight: 7,520 kg
• Robot hydraulics: self-sufficient 35 bar
• Chassis hydraulics: self-sufficient 165 bar
• Hydraulic flow (tractor): 30–40 L/min
• Electric supply: Robot and chassis self-sufficient 24 V
• PTO speed: 1000 RPM
• Robot tray adjustability: yes
• Sensor features: empty-plug selector, no-plant alarm
• Press wheels: 410x80 – 410x60
• Plant disc adjustment: mechanical
• Rear axle: single axis, track wheels 30 cm wide, steerable
• Homologation: No
