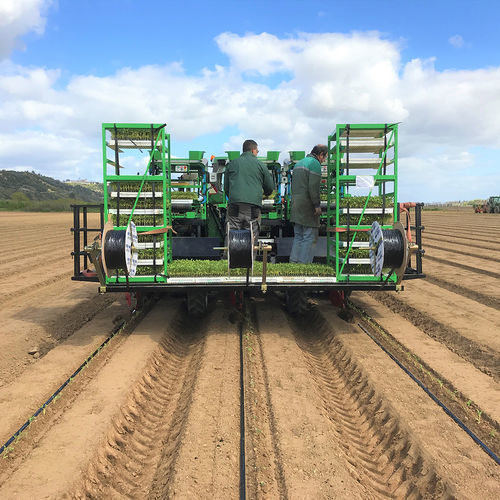

Tomato transplanter 3 SP

automatic3-rowtowed

Presentation
3-row automatic vegetable transplanter for mounted or trailed configurations. Designed to plant trays and seedlings with adjustable robot and sensorhead.

General information
Number of rows: 3
Distance between the rows: 140 ~ 168 cm / 55 ~ 66 inch
Distance in the row: 10 ~ 60 cm / 4 ~ 23 inch
Wheeltrack: 140 ~ 180 cm / 55 ~ 70 inch
Type: mounted – trailed
Capacity: Up to 36,000 plants/hour (*)
(*) This is a theoretical value.

Soil preparation
Flat field: Yes
Beds: Yes

Dimensions
Length - Mounted (without rear platform): 248 cm / 97 inch
Length - Trailed (without rear platform): 393 cm / 154 inch
Width: 395 cm / 155 inch
Height: 260 cm / 103 inch
Weight: 3400 kg

Hydraulics
Robot: Self-sufficient (35 bar)
Chassis: Tractor (165 bar)
Oil flow tractor: 40 L/min (10 GPM)

Electricity
Robot: Self-sufficient (24V)
Chassis: Self-sufficient (24V)

Transmission
PTO: 540 RPM

Robot
Adjustable for different trays: Yes

Sensorhead
Selector empty plugs: Yes
Alarm no plants: Yes

Planting element
Press wheels: 580x80 – 410x80 – 410x60
Adjusting plant discs: Mechanical

Rear axle system
Number of axes: 2 (adjustable)
Wheels: Different wheels possible

Homologation
Homologation: No

Options

• Water barrel — 400 L
• Micro-granulate — 16 L
• Fertilizer — 160 L
• Driptape

Note
(*) This is a theoretical value. Information may be modified.

Technical specifications

• Model: 3 SP
• Number of rows: 3
• Distance between the rows: 140 ~ 168 cm / 55 ~ 66 inch
• Distance in the row: 10 ~ 60 cm / 4 ~ 23 inch
• Wheeltrack: 140 ~ 180 cm / 55 ~ 70 inch
• Type: mounted – trailed
• Capacity: Up to 36,000 plants/hour (theoretical)
• Dimensions (L×W×H) mounted: 248 cm × 395 cm × 260 cm (without rear platform)
• Dimensions (L) trailed: 393 cm (without rear platform)
• Weight: 3400 kg
• Hydraulics robot: Self-sufficient (35 bar); chassis: Tractor (165 bar); oil flow tractor: 40 L/min (10 GPM)
• Electricity: Robot and chassis self-sufficient (24V)
• Transmission: PTO 540 RPM
• Robot: Adjustable for different trays
• Sensorhead: Selector empty plugs; Alarm no plants
• Planting element: Press wheels 580x80 – 410x80 – 410x60; mechanical adjusting plant discs
• Rear axle system: 2 adjustable axes; different wheels possible
• Homologation: No
