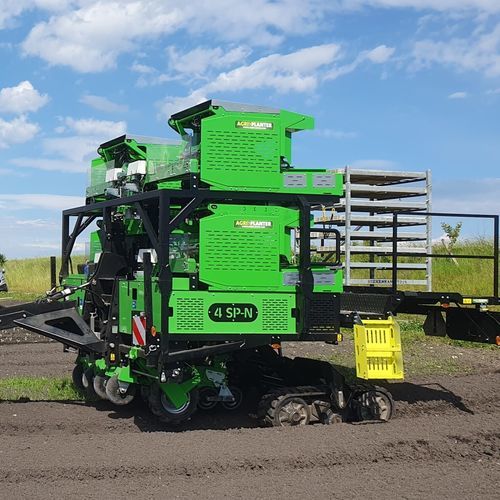

Vegetable transplanter 4 SP-N

automatic4-rowtowed

Overview
Automatic trailed 4-row transplanter designed for the automatic transplanting of vegetable seedlings. Adjustable for different trays and suitable for flat and bedded fields.

General info
Number of rows: 4
Distance between the rows: 32 ~ 70 cm / 13 ~ 27 inch
Distance between the twins: 50 ~ 55 cm / 20 ~ 22 inch
Distance in the row: 10 ~ 60 cm / 4 ~ 23 inch
Wheel track: 200 ~ 305 cm / 78 ~ 120 inch
Type: Trailed
Capacity: Up to 44,000 plants/h (*)

Soil preparation
Flat field: Yes
Beds: Yes

Dimensions
Length (with rear platform): 615 cm / 242 inch
Width: 336 cm / 132 inch
Height: 336 cm / 132 inch
Weight: 4700 kg

Hydraulics
Robot: Self-sufficient (35 bar)
Chassis: Tractor (165 bar)
Oil flow tractor: 30 L/min (7.5 GPM)

Electricity
Robot: Self-sufficient (24V)
Chassis: Self-sufficient (24V)

Transmission
PTO: 540 tr/min (standard / 1000 tr/min optional)

Robot
Adjustable for different trays: Yes

Sensorhead
Selector empty plugs: Yes
Alarm no plants: Yes

Planting element
Press wheels: 580x80 – 410x80 – 410x60
Adjusting plant discs: Mechanical

Rear axle system
Number of axes: 1
Rear axle steerable: Optional, only wheel system
Wheels: Different wheels possible / tracks

Homologation
Homologation: No

Options
Micro-granule: 16 L (optional)

Notes
(*) This is a theoretical value. The information is subject to change.

Technical specifications

• Model: 4 SP-N
• Number of rows: 4
• Distance between the rows: 32 ~ 70 cm / 13 ~ 27 inch
• Distance between the twins: 50 ~ 55 cm / 20 ~ 22 inch
• Distance in the row: 10 ~ 60 cm / 4 ~ 23 inch
• Wheel track: 200 ~ 305 cm / 78 ~ 120 inch
• Type: Trailed
• Capacity: Up to 44,000 plants/h (*)
• Length (with rear platform): 615 cm / 242 inch
• Width: 336 cm / 132 inch
• Height: 336 cm / 132 inch
• Weight: 4700 kg
• Hydraulics robot: Self-sufficient (35 bar)
• Hydraulics chassis: Tractor (165 bar)
• Oil flow tractor: 30 L/min (7.5 GPM)
• Electricity: Self-sufficient (24V) robot & chassis
• PTO: 540 tr/min standard (1000 tr/min optional)
• Robot: Adjustable for different trays
• Sensorhead: Selector empty plugs, Alarm no plants
• Press wheels: 580x80 – 410x80 – 410x60
• Adjusting plant discs: Mechanical
• Rear axle system: 1 axis, steerable optional (wheel system)
• Homologation: No
