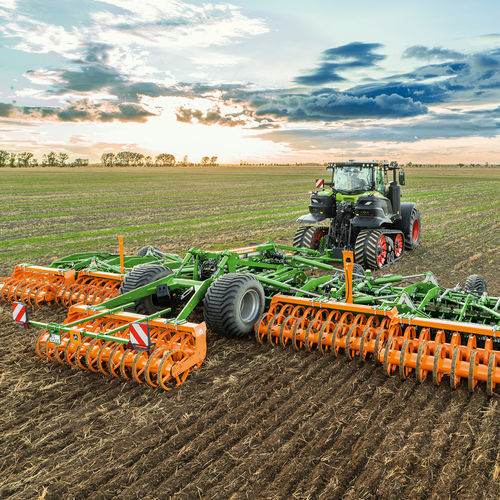

Towed disc harrow Catros+ 12003-2TX

5-sectionwith hydraulic adjustmentfolding

Overview
AMAZONE Catros+ 12003-2TX is a trailed compact disc harrow offered in 12.00 m and optional 12.25 m working widths for Controlled Traffic Farming (CTF). It combines an integrated TX mid-mounted chassis with a 5-part ContourFrame folding system, individually suspended 510 mm discs (optional 480 mm X-Cutter for very shallow work), a wide range of rear packers and maintenance-free disc bearings. The machine is designed to deliver high outputs with low tractive force and is targeted at large farms and contractors.

Key features

• Working widths: 12.00 m standard; optional extended element 12.25 m for CTF.
• TX mid-mounted chassis integrated with a 5-part ContourFrame for optimum contour following.
• Transport width approx. 2.95 m; optional pneumatic braking system for 40 km/h approval.
• ComfortClick electric control (optional) for quick switching between transport and working positions from the cab.
• Smart Frame System: fully hydraulic working depth adjustment from the cab; depth guided by leading support wheels and rear roller.
• Disc options: standard 510 mm (smooth, fine-serrated, coarse-serrated) for 5–14 cm; optional X-Cutter 480 mm for 2–8 cm shallow work.
• Individually suspended discs protected by elastic rubber buffers; maintenance-free bearings with face seals.
• V-shaped disc layout for uniform mixing across the full working width.
• Headland operation: packer rollers engage and disc element lifts via hydraulic drawbar for stable turning.
• Wide selection of rear packers including SW 600, KWM 600/650, DW 600 and DUW 580 pro.

Applications
The Catros+ is specialised for fast, shallow and intensive soil cultivation: stubble cultivation to break capillarity, stale seedbed preparation, incorporation of catch crops and organic fertilisers, secondary stubble cultivation and seedbed preparation. It is suitable for minimal soil inversion shallow work and universal year-round use.

Operation & equipment
The integrated TX chassis with generously dimensioned transport tyres provides excellent road behaviour. Optional ComfortClick and hydraulic drawbar functions simplify switching between transport and work positions and improve operator comfort. The Smart Frame System increases internal clearance when working deeper to allow reliable mixing of large amounts of organic material. The ContourFrame with five individually floating segments ensures consistent coverage on very undulating ground.

Notable options

• Optional X-Cutter discs (480 mm) for minimal soil disturbance (2–8 cm).
• Optional extended disc element for 12.25 m working width (CTF).
• Choice of packers: SW 600 cage roller, KWM 600/650 wedge ring rollers, DW 600 disc roller, DUW 580 pro double U-profile roller.
• Attachment and hitch options: Cat.3/Cat.4 lower link cross shaft, K80 ball coupling or drawbar eyes; pneumatic braking system; ComfortClick control.

Technical specifications

• Model: Catros+ 12003-2TX
• Brand: AMAZONE
• Working widths: 12.00 m (standard); 12.25 m (optional CTF)
• Transport width: approx. 2.95 m
• Standard disc diameter: 510 mm (smooth, fine-serrated, coarse-serrated)
• Optional disc diameter: X-Cutter 480 mm (2–8 cm)
• Working depth (510 mm): 5–14 cm
• X-Cutter working depth: 2–8 cm
• Maximum working speed: up to 18 km/h
• Frame / folding: TX chassis integration with 5-part ContourFrame
• Depth adjustment: Smart Frame System — fully hydraulic from the cab
• Reconsolidation options: SW 600, KWM 600, KWM 650, DW 600, DUW 580 pro
• Disc suspension: individual with elastic rubber buffers; maintenance-free bearings with face seals
• Packer / headland behaviour: packer rollers engaged on headland; disc element lift via hydraulic drawbar
• Optional equipment: ComfortClick electric control; pneumatic braking system (40 km/h)
• Attachment options: Cat.3/Cat.4 lower link, K80 ball coupling, drawbar eyes
