Elbow irrigation fitting 0401250.050909

threadedPPpolypropylene

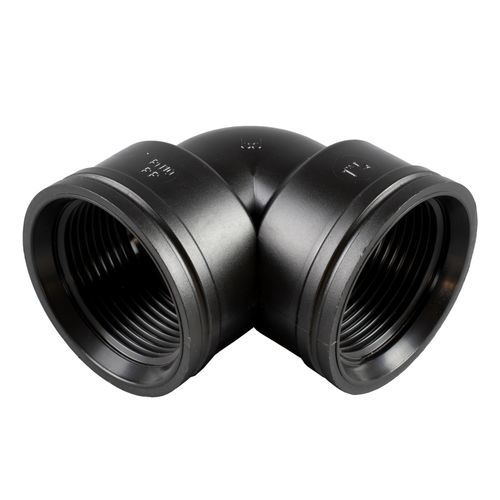

A 90° elbow in black polypropylene (PP) with female G threaded ends, designed for piping connections in outdoor and gardening applications. Supplied in multiple G (gas) sizes and variant codes. Technical 3D model files and datasheet are available for download.

Product variants

• Code 0401250.050909 — G: 1"1/4; L(1): 24,5; H: 75; H1: 75; E: 53,5
• Code 0401250.051111 — G: 1"1/2; L(1): 24,5; H: 81; H1: 81; E: 61
• Code 0401250.051515 — G: 2"; L(1): 28; H: 98; H1: 98; E: 75

Datasheet / 3D models

• 3D models and technical files are provided as a downloadable ZIP (files/0401250.zip) containing the product datasheet and model files (download link available on the product page).

Characteristics / Specifications

• Line / Series: Line 4000 - Outdoor & Gardening
• Connectivity standard: Internal thread GAS cylindrical ISO 228/1
• Operating pressure: 10 bar at 20°C
• Maximum working temperature: 80°C
• Materials: Polypropylene (PP)
• Color: Black (RAL 9011)
