Elbow irrigation fitting 0400671.050312

barbedthreadedpolypropylene

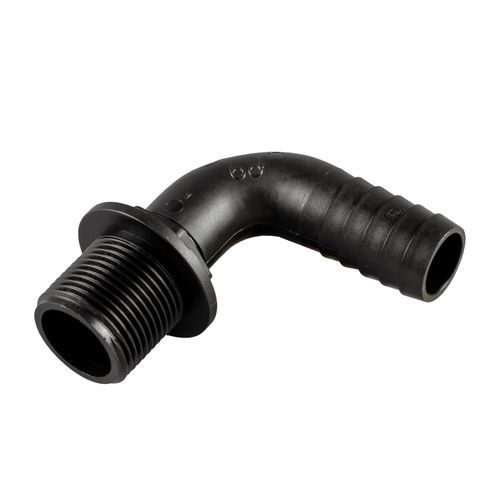

This 90° male bulkhead hose barb (series 0400671) is moulded in black polypropylene and combines a DN hose barb with a male G1 threaded outlet. Part of Line 4000 - Outdoor & Gardening, it is designed for fluid connections on panels, tanks and garden equipment where a compact panel feed-through and a threaded connection are required.

Variants

• Code 0400671.050312 — G1: 1/2″; DN mm (inch): 12 (15/32″); D: 7; D1: 14; H: 50; H1: 61; L(a): 30; E: 33; L: 20
• Code 0400671.050320 — G1: 1/2″; DN mm (inch): 20 (25/32″); D: 15; D1: 14; H: 65.5; H1: 73.5; L(a): 33; E: 33; L: 20
• Code 0400671.050520 — G1: 3/4″; DN mm (inch): 20 (25/32″); D: 15; D1: 19; H: 65.5; H1: 73.5; L(a): 33; E: 33; L: 20
• Code 0400671.050525 — G1: 3/4″; DN mm (inch): 25 (1″); D: 19.5; D1: 19.5; H: 73.5; H1: 75.5; L(a): 33.5; E: 33; L: 20
• Code 0400671.050732 — G1: 1″; DN mm (inch): 32 (1 1/4″); D: 24.5; D1: 24.5; H: 80; H1: 91.5; L(a): 30; E: 30; L: 24

Characteristics / Technical specifications

• Material: Polypropylene (black)
• Shape / angle: 90° elbow
• Type: Male bulkhead hose barb (panel/panel feed-through with hose barb and male threaded end)
• Threaded connection: male G1 thread (available sizes shown in variants: 1/2″, 3/4″, 1″)
• Hose connection: designed for DN hoses (see DN values per variant)
• Product line / application: Line 4000 - Outdoor & Gardening (panel/tank connections, garden irrigation equipment)
• Available in multiple variant codes with specific dimensional data (see Variants list)
