Straight irrigation fitting 0400833.050312

barbedthreadedpolypropylene

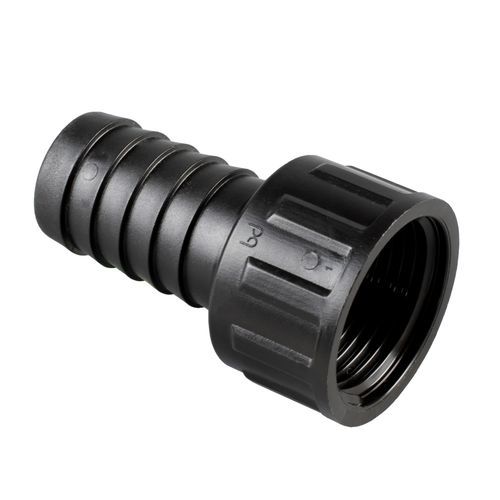

Straight female hose barb made of black polypropylene designed to connect a DN hose on one end and a female G-threaded fixed ring nut on the other; supplied with one flat EPDM gasket.

Variants / Table of available codes and dimensions

• Code 0400833.050312 — G: 1/2" — DN mm(inch): 12 (15/32") — D: 7,5 — H: 54,5 — L(a): 28 — E: 26,5 — L(1): 19
• Code 0400833.050316 — G: 1/2" — DN mm(inch): 16 (5/8") — D: 10,5 — H: 60,5 — L(a): 33,5 — E: 26,5 — L(1): 19
• Code 0400833.050320 — G: 1/2" — DN mm(inch): 20 (25/32") — D: 14 — H: 60,5 — L(a): 33,5 — E: 26,5 — L(1): 19
• Code 0400833.050520 — G: 3/4" — DN mm(inch): 20 (25/32") — D: 13,5 — H: 61,5 — L(a): 33,5 — E: 32,5 — L(1): 19
• Code 0400833.050725 — G: 1" — DN mm(inch): 25 (1") — D: 19 — H: 66 — L(a): 36 — E: 40 — L(1): 20,5
• Code 0400833.050732 — G: 1" — DN mm(inch): 32 (1"1/4) — D: 25,5 — H: 73 — L(a): 37 — E: 40,5 — L(1): 20,5

Notes
Product belongs to the Line 4000 - Outdoor & Gardening range. Supplied with a single flat EPDM gasket. Material and connection types are indicated for each variant above.

Technical characteristics / specifications

• Material: black polypropylene (body)
• Gasket: 1 flat EPDM gasket included
• Connection (hose side): DN hose sizes vary per variant (see variants table)
• Connection (threaded side): female G threaded fixed ring nut (G sizes per variant)
• Product family / Line: Line 4000 - Outdoor & Gardening
• Available product codes / variants: 0400833.050312, 0400833.050316, 0400833.050320, 0400833.050520, 0400833.050725, 0400833.050732
