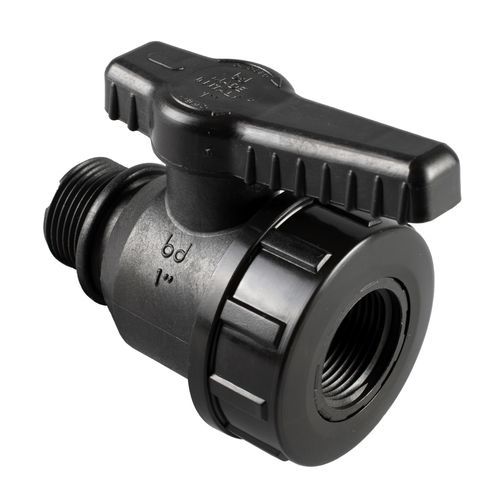

Shut-off valve 0200360.050303

ballplasticpolypropylene

Description
This inspectable female–male ball valve is manufactured in black, glass-fibre reinforced polypropylene and supplied with an NBR O‑ring. It is designed for inline isolation in piping systems, provides full-bore flow and can be disassembled for inspection and maintenance.

Key features

• Type: inspectable/serviceable ball valve (female–male configuration)
• Material: glass‑fibre reinforced polypropylene (black)
• Connections: female end with G thread — male end with G1 thread
• Seal: NBR O‑ring
• Full bore (through passage)
• Pressure rating: 10 bar at 20°C

Variants / References

• 0200360.050303 — G: 1/2" — G1: 1/2" — DN: 15 — L: 16 — L(1): 17.5 — H: 85 — H1: 97 — E: 58
• 0200360.050505 — G: 3/4" — G1: 3/4" — DN: 20 — L: 17 — L(1): 19 — H: 94 — H1: 114 — E: 64
• 0200360.050707 — G: 1" — G1: 1" — DN: 25 — L: 19 — L(1): 22 — H: 102 — H1: 124 — E: 72
• Image / SKU references on page: 0200360, 0200360A

Documents available

• Archive / 3D models: files/0200360.zip (download on product page)

Technical specifications

• Product type: inspectable ball valve for isolation
• Body material: glass‑fibre reinforced polypropylene (black)
• O‑ring material: NBR (nitrile rubber)
• Thread standard: G (cylindrical) per ISO 228/1; manufacturer applies a slight internal taper for hydraulic sealing — allow slight tightening during assembly (see torque table)
• Connectivity: threaded G / G1
• Working pressure: 10 bar at 20°C
• Maximum temperature: 80°C (application dependent)
