Straight irrigation fitting 0400670.050920
barbedthreadedplastic

Straight irrigation fitting - 0400670.050920 - Bucchi S.r.l - barbed / threaded / plastic

Straight irrigation fitting - 0400670.050920 - Bucchi S.r.l - barbed / threaded / plastic - image - 2

Add to favorites

Compare this product

Characteristics

Configuration: straight
Type: barbed, threaded
Material: plastic, PP, polypropylene
Other characteristics: male

Description

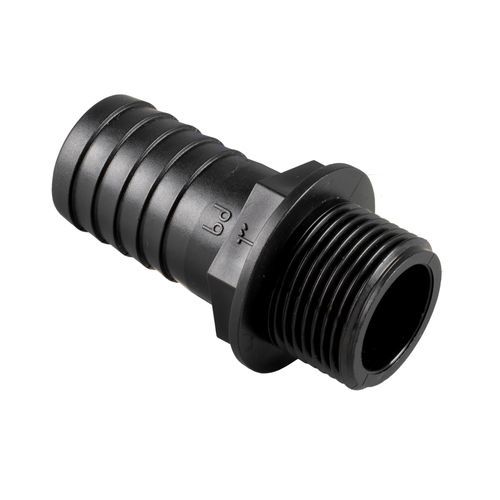

A straight male bulkhead hose barb in black polypropylene designed to connect a DN hose on one side and a male G1 threaded connection on the other side. Suitable for outdoor and gardening systems and available in multiple dimensional variants.

Available variants (codes and dimensional data)

Code 0400670.050920
- G1: 1"1/4
- DN mm(inch): 20 (25/32")
- D: 13
- D1: 32,5
- H: 72,5
- L(a): 30
- E: 55
- L: 21
- K: 41
Code 0400670.050925
- G1: 1"1/4
- DN mm(inch): 25 (1")
- D: 19,5
- D1: 32,5
- H: 75
- L(a): 37
- E: 55
- L: 21
- K: 41
Code 0400670.050930
- G1: 1"1/4
- DN mm(inch): 30 (1"3/16)
- D: 24,5
- D1: 32,5
- H: 81
- L(a): 43
- E: 55
- L: 21
- K: 41
Code 0400670.050932
- G1: 1"1/4
- DN mm(inch): 32 (1"1/4)
- D: 25,5
- D1: 32,5
- H: 81
- L(a): 43
- E: 55
- L: 21
- K: 41
Code 0400670.050935
- G1: 1"1/4
- DN mm(inch): 35 (1"3/8)
- D: 29
- D1: 32,5
- H: 81
- L(a): 43
- E: 55
- L: 21
- K: 41

Technical specifications

Product type: Straight male bulkhead hose barb
Material: Black polypropylene (plastic)
Connections: one end for DN hose (variants per DN size), the other a male G1 threaded end
Series / Category: Line 4000 - Outdoor & Gardening
Multiple variant codes available with specific dimensional data (see variants list above)
