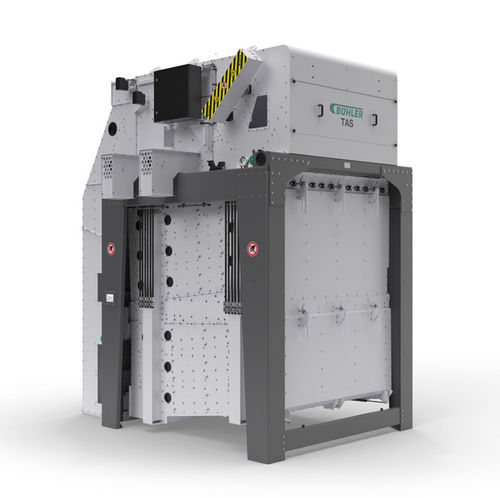

Wheat crop cleaning machine TAS series

ricecerealmaize

Overview
The TAS universal cleaning machine is a high-end grain cleaning machine for processing wheat, rice, corn and other bulk materials into high-quality products. This high-throughput, hygienic and efficient sieving system is used for the reception and storage of grain.

Key benefits

• Reduced operation costs: Both the inlet and outlet aspirations are connected and use the same air, allowing the TAS to operate with a small fan and reducing energy consumption.
• First-class cleaning and grading: A high density of sieves performing gentle circular movements separates product and impurities effectively; the machine provides easy access for sampling, product checks and airflow adjustment.
• High throughput on a small footprint: The TAS offers a large sieve area (up to 48 m²) on a footprint of less than 12 m², delivering high throughputs with low space requirements and potentially reducing initial investment costs.

Highlight features

• Full control at your fingertips: The new TAS LAAC variant can be controlled remotely from anywhere in the plant. Recipe settings and targeted cleaning can be adjusted remotely to improve yield and quality. Remote adjustments reduce labour costs and make product changes seamless; no external throttle valve is required and optimization is supported via Bühler digital services.
• Green future — Taking on the challenge: Fast electrical aspiration settings reduce waste; new LED lighting reduces energy use and maintenance; wear protection and sealing have been improved for longer service life. Fast-changing electrical settings and sieve box movement further save energy.

Other features / Options

• Optional sieve changing platform: Swing-down work platform with guardrail for safe and easy sieve changing; swings up onto the TAS when not in use; delivered as a pre-assembled kit.
• Automatic inlet regulating device: Optional inlet regulator automatically distributes grain and product over the entire machine width, reducing wear, increasing capacity and eliminating manual adjustments during product changes.
• Optional lining: Polyurethane plate lining can be added to inlet/outlet and product distribution areas to reduce wear and noise.
• Large main sieve area: Special design with a significantly larger main screen area enables very precise cleaning and sorting into two grades — valuable for malting plants and grain processing plants.
• Optional screen changeover unit: Enables two-stage operation and dual grading without changing the sieve; useful for frequent product changes.
• Sieves designed for easy maintenance: Sieves are attached to sturdy metal frames and kept clean by rubber balls that move with the machine motion. Sieves can be changed quickly through a front panel and are retained by the pressure of sieve flaps (no screws to loosen during replacement).
• Intelligent airflow: Two large expansion chambers allow light particles to fall to the chamber bottom where they are removed by a discharge screw; this keeps the filter clear and prevents sieve clogging by dust and particles.
• High-quality grain cleaning: High density of sieves ensures longer product contact and more thorough removal of impurities; gentle circular motion and easy sampling via a flap support quality control.

Caractéristiques / spécifications techniques

• High density of sieves with gentle circular movement for thorough separation of impurities.
• Large total sieve area up to 48 m² on a footprint of less than 12 m².
• Connected inlet and outlet aspirations using the same air, enabling operation with a small fan and reduced energy consumption.
• Remote control capability (TAS LAAC): remote recipe settings and plant-wide control; no external throttle valve required.
• LED lighting for reduced energy use and lower maintenance.
• Improved wear protection and sealing for longer service life.
• Optional swing-down sieve changing platform (pre-assembled kit) with guardrail.
• Optional automatic inlet regulator to distribute product evenly and increase capacity.
• Optional polyurethane lining for inlet, outlet and distribution areas to reduce wear and noise.
• Optional screen changeover unit for two-stage grading without sieve change.
• Sieves mounted on sturdy metal frames; rubber-ball cleaning; front-panel changeover; sieves retained by sieve flap pressure (no screws).
• Two large expansion chambers and discharge screw to remove light particles and prevent sieve clogging.
• Designed for precise cleaning and grading, can sort into two product grades (suitable for malting and grain processing plants).
