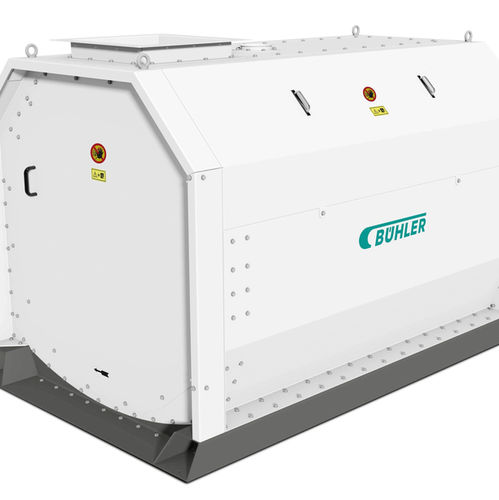

Grain pre-cleaner LAKA

drum

Overview
By pre-cleaning, the drum sieve LAKA removes wood, corncobs and other coarse objects from grain. It protects downstream equipment and is designed for terminals, ports, reception areas and processing plants for grain, rice and animal feed.

Key benefits

• Protect downstream equipment: install the drum sieve LAKA at the start of the process to remove coarse particles and prevent damage to downstream machinery.
• Easy maintenance access: large front door and removable panels on both sides simplify cleaning and service.
• High throughput capacity: processes up to 800 t/h to handle high-volume reception flows.

Highlight features

• Split sieve drum design: efficient coarse cleaning via inlet and outlet cylinders with a guided screw and multiple sieve combinations for high reception throughput.
• Maintenance options: two solutions for screen change and cleaning — the inlet channel can be swivelled out by an arm and the sieve drum is removable by a stationary crane trolley.
• Robust construction: solid base frame for continuous operation; optional wear protection to extend service life.
• Enclosed housing: the sieve is fully covered to reduce dust, improve housekeeping and increase operator safety.

Applications

• Terminals, ports, reception areas and processing plants handling grain, rice and animal feed.

Characteristics / technical specifications

• Model: LAKA
• Function: coarse pre-cleaning to remove wood, corncobs and other coarse foreign objects
• Throughput: up to 800 t/h
• Design: split sieve drum with inlet and outlet cylinder, guided screw and various sieve combinations
• Maintenance: large front door; removable panels on both sides; swivel arm to swivel out inlet channel; sieve drum removable by stationary crane trolley
• Construction: solid base frame for continuous operation; optional wear protection
• Safety/housekeeping: fully enclosed housing to reduce dust and increase operator safety
• Typical industries: grain handling, rice processing, animal feed, terminals and ports
