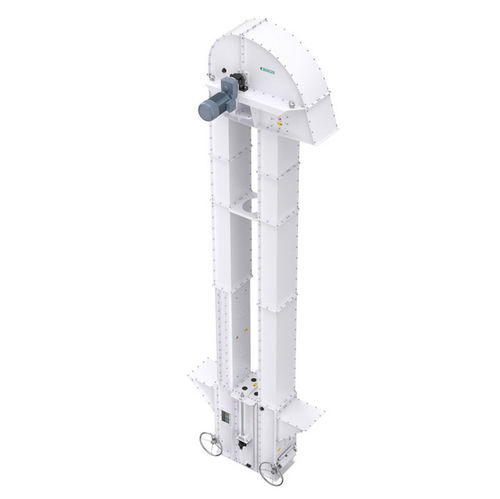

Vertical bucket elevator AHEL series

Product overview
The belt and bucket elevator AHEL is a vertical conveyor for bulk materials such as grain, animal feed, pellets, and oilseed, with a throughput of up to 1400 t/h.

Key benefits

• Designed for easy maintenance: Split elevator hood provides direct access to internal components for fast servicing.
• Sanitary design: Round bolt heads and a rounded casing profile reduce material residue and prevent dust accumulation.
• Wear protection: Wear-resistant materials are applied at high-wear zones including inlet, boot and head.

Highlight features

• Fast, simple installation: Pre-stressed elevator belts enable one-step tensioning, cutting installation time by up to 80%.
• Modular versatility: Modular and compact design with multiple options to integrate with terminals, silos or feed mills; compact casing eases transport.
• Safety and monitoring: Integrated speed and belt-skew monitors plus bearing temperature sensors that stop the conveyor on overheating.

Downloads (available)

• Elevators Brochure
• Belt and bucket elevator AHEL Data Sheet

Technical specifications

• Model: AHEL
• Type: Belt and bucket elevator (vertical conveyor)
• Suitable materials: grain, animal feed, pellets, oilseed
• Maximum throughput: up to 1400 t/h
• Maintenance: split elevator hood for easier access
• Sanitation features: round bolt heads; rounded casing to reduce dust settling
• Wear protection: wear-resistant materials at inlet, boot and head
• Belt design: pre-stressed belts for one-step tensioning
• Modularity: modular design with multiple options; compact casing for shipping
• Monitoring & safety: speed and belt-skew monitor; bearing temperature monitor with automatic stop on overheating
• Installation time reduction: up to 80% compared to conventional installation (due to pre-stressed belts)
