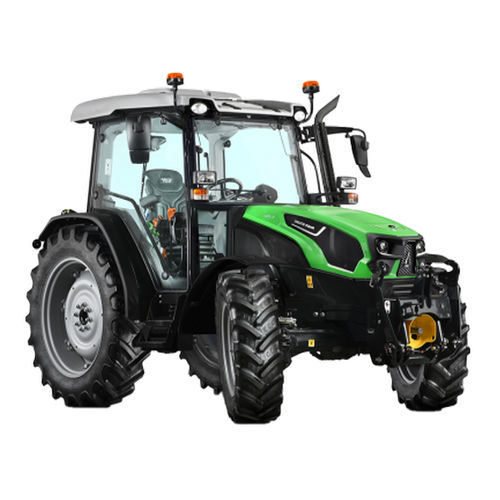

Powershuttle tractor 5D series
power-shift4-cylinder3-cylinder

powershuttle tractor
powershuttle tractor
powershuttle tractor
Add to favorites
Compare this product


Characteristics

Transmission
power-shift, powershuttle
Number of cylinders
4-cylinder, 3-cylinder
Other characteristic
compact, with cab, 3-point hitch, front PTO
Engine power

66 kW, 74 kW (90 hp)

Displacement

3,849 cm³ (130 US fl oz)

Wheelbase

2,271 mm (89.4 in)

PTO speed

540 rpm, 1,000 rpm (3,392.9 rad.min-1)

Torque

389 Nm, 433 Nm (287 ft.lb)

Maximum speed

40 km/h (24.9 mph)

Fuel tank capacity

110 l (29.1 gal)

Total length

4,065 mm (160 in)

Total height

2,571 mm (101.2 in)

Weight

3,575 kg (7,881.5 lb)

Description

New 5D Series Stage V. for those who want the best. The new 5D series includes modular and versatile models with unique features such as the Powershuttle with SenseClutch, Stop & Go, 3-stage Powershift, 3-mode PTO with the option of ground speed PTO, mechanical or electronic rear linkage, electro-hydraulic differential lock and PTO engagement and 4-wheel disc brakes. This is a formidable 'package' for unrivalled comfort, productivity and safety! AGRICULTURAL IN ITS DNA AND WITH INCREASINGLY HIGH PERFORMANCE. In its latest evolution, the 4-cylinder FARMotion 45 installed on the 5D Stage V series models confirms the compactness and responsiveness of the previous version, while further improving fuel economy and performance. Despite having one of the most generous displacements in its category, the overall dimensions of the FARMotion 45 are extremely reduced, guaranteeing excellent visibility from the driving position and excellent manoeuvrability. With a modular cylinder and head design, the FARMotion 45 features an advanced combustion chamber design (with automatic valve play adjustment), electronically controlled Bosch common rail injection up to 2000 bar, 7-hole injectors, viscostatic fan and PowerCore air intake filter: a series of technical solutions that allow the new 5D Stage V to optimise fuel consumption and reduce noise, which also has excellent impact on productivity and comfort. With a maximum engine speed of just 2200 rpm, the 5095D and 5105D deliver maximum power of 95 and 106 HP respectively at 2000 rpm, while maximum torque at 1400 rpm is 389 and 433 Nm.
