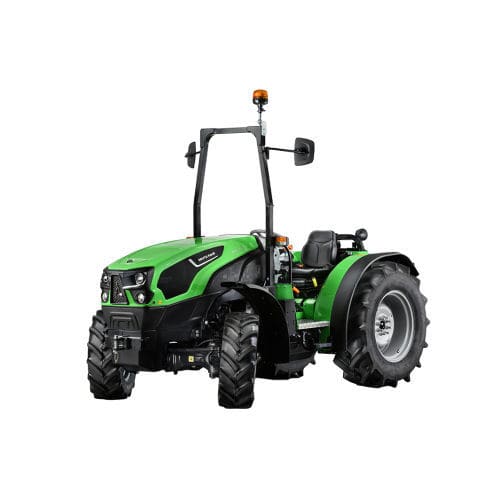

4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 2
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 3
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 4
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 5
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 6
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 7
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 8
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 9
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 10
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 11
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 12
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 13
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 14
4-cylinder tractor - 5DF (Platform) - Deutz-Fahr - 3-cylinder / with ROPS / front PTO - image - 15
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Number of cylinders
4-cylinder, 3-cylinder
Other characteristic
4 wheel drive, with ROPS, front PTO
Engine power

Max.: 116 ch
(116 hp)

Min.: 90 ch
(90 hp)

Displacement

2,887 cm³, 3,849 cm³
(98 US fl oz, 130 US fl oz)

Wheelbase

2,044 cm, 2,174 cm
(85.6 in, 804.7 in)

PTO speed

540 rpm, 1,000 rpm
(3,392.9 rad.min-1, 6,283.2 rad.min-1)

Torque

372 Nm, 389 Nm, 417 Nm, 433 Nm, 472 Nm
(274 ft.lb, 287 ft.lb, 308 ft.lb, 319 ft.lb, 348 ft.lb)

Maximum speed

40 km/h
(24.9 mph)

Fuel tank capacity

82 l
(21.7 gal)

Total length

3,825 mm, 3,955 mm
(150.6 in, 155.7 in)

Total height

2,355 mm
(92.7 in)

Weight

2,590 kg, 2,650 kg
(5,710 lb, 5,842.2 lb)

Description

The Series 5 DF platform range includes five models, ranging from 91 to 116 hp, with 3 or 4-cylinder engines, two different wheelbases, and loads of options in terms of transmissions, hydraulics and accessories. The total integration of powerful, reliable, and fuel efficient engines, like the FARMotion 35 and 45, with high-performance transmissions entirely designed and produced by the manufacturer for this class of tractors, guarantees top of class performance while also maintaining low levels of fuel consumption. Low mudguard heights and the tapered and sloping bonnet ensure maximum levels of agility making these tractors perfect for working in kiwi, table grapes vineyard and all other fruit growing. Despite the absence of the cab, the comfort is still at maximum levels, thanks to 4 Hydro-Silent Block suspension of platform, driver seat with pneumatic suspension, independent front axle suspension and even electronic rear lift with vibration damping system.
