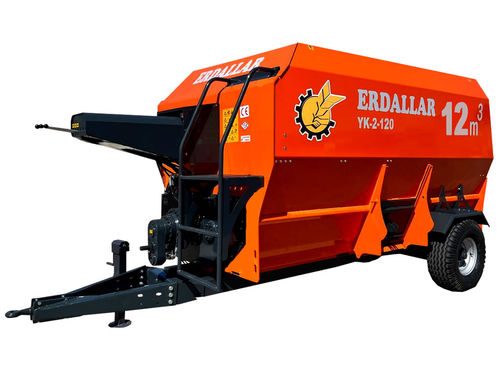

Horizontal feed mixer MAK-12-22towedside discharge2-auger
Add to favorites
Compare this product
Characteristics
- Auger orientation
- horizontal
- Mobility
- towed
- Discharge type
- side discharge
- Number of screws
- 2-auger
- Capacity in m³
12 m³
(423.8 ft³)
Description
It has the capacity to take care of 110 - 120 cattle or 1100 - 1200 sheep & goat.
It forms a homogeneous mixture with 25 - 28 bales.
Optional weighing system is available.
The machine has horizontal helix.
Technical Features
Lenght: 5575 mm
Width: 2415 mm
Height: 2675 mm
Weight: 4400 kg
Conveyor Dimensions: 710 x 750
Material: Steel Pipe
Material Type: 12mm ST37
Transfer System: Shaft and Reducter
Pull Type: Pull Type
RPM: 540 d/dk
Required Tractor Power: 55-75 HP
Number of Blades: 112
Blade Type: Ax and daisy
Helix Diameter: 2400 mm
Helix Rotation Cycle: 33,5 per minute
Side Sheet Thickness: 5mm
Base Sheet Thickness: 20 mm
Loading Bucket: Standard
Self Lubrication: Standard
Digital Weighing System: Optional
2nd Conveyor Belt: Optional
