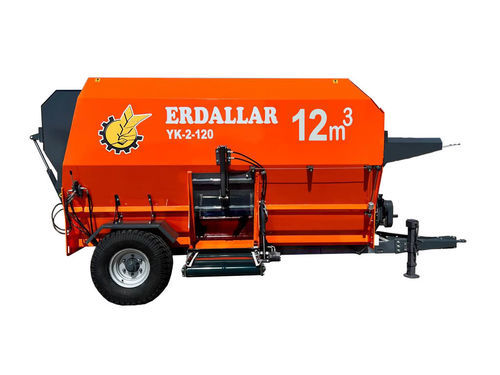

Horizontal mixing wagon towedside dischargerear discharge
Add to favorites
Compare this product
Characteristics
- Auger orientation
- horizontal
- Mobility
- towed
- Discharge type
- side discharge, rear discharge
- Number of screws
- 2-auger
- Other characteristic
- with loading scoop, with weighing system
- Capacity in m³
12 m³
(423.8 ft³)- Capacity in kg
4,600 kg
(10,141.26 lb)
Description
Product Overview
Technical Details
Specifications
Recommended Applications
- 12 m³ trailed fixed feed mixer designed to mix and distribute total mixed rations on farms
- Capacity suitable for 100–110 adult cattle or 1000–1200 small ruminants
- Produces a homogeneous mixture using 25–28 bales; optional digital weighing system available
Technical Details
- Tractor power: 55–75 HP
- Number of spirals: 2
- Auger type: horizontal double helix
- Auger diameter: 620 mm
- Auger rotation: 22 rpm
- Material: steel pipe construction
- Number of knives: 112 (oval and disc)
- Pull type: trailed
Specifications
- Volume: 12 m³
- Conveyor dimensions: 710 x 750 mm
- Auger pipe thickness: 10 mm
- Auger leaf thickness: 15 mm
- Side sheet thickness: 5 mm
- Base sheet thickness: 10 mm
- Weight: 4600 kg
- Length: 5575 mm
- Width: 2415 mm
- Height: 2670 mm
- Transfer system: shaft and reducer
- Side discharge door: standard
- Rear bucket loader: standard
- Self-lubricated: standard
- Digital weighing system: optional
Recommended Applications
- Mixing and distribution of TMR for dairy and beef farms
- Large-scale feed preparation where homogeneous bale processing is required
Catalogs
No catalogs are available for this product.
See all of ERDALLAR AGRICULTURAL MACHINERY‘s catalogsOther ERDALLAR AGRICULTURAL MACHINERY products

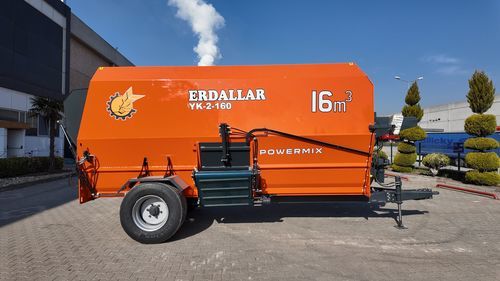

Feed Mixer Machine
