Vertical feed mixer

towedfront discharge2-auger

Product overview

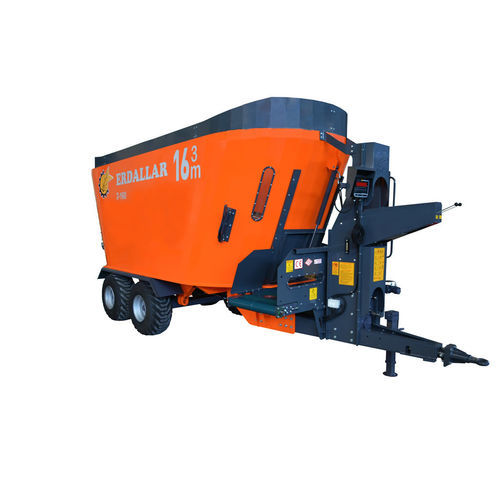

The 16 m³-8 fixed vertical double-helix feed mixer is a trailed agricultural machine designed to mix and distribute Total Mixed Ration (TMR) for medium to large herds. Equipped with two vertical augers and a 1,800 mm auger diameter, it ensures thorough mixing of silage, hay and concentrates. Compatible with 85–95 HP tractors and available with optional weighing and rear loader systems.

Key features

• Capacity: 16 m³
• Suitable herd size: approx. 160–1,700 head or 1,600–1,700 smaller animals (depending on animal size)
• Homogeneous mix using 23–27 bales
• Two vertical spirals (double helix)
• Auger diameter: 1,800 mm
• 18 triangular knives for efficient cutting
• Trailed pull type for PTO operation (85–95 HP)
• Front discharge door standard; rear bucket loader optional
• Self-lubricated bearings standard; digital weighing system optional

Technical specifications

• Model: 16 m³-8
• Tractor power: 85–95 HP
• Number of spirals: 2
• Auger type: vertical auger
• Auger rotation speed: 33.5 rpm
• Material: steel pipe construction
• Number of knives: 18 (triangle type)
• Pull type: trailed
• Front discharge: standard
• Rear bucket loader: option
• Self-lubricated: standard
• Digital weighing system: option
• Transfer system: shaft and reducer
• Conveyor dimensions: 730 x 2100 mm
• Auger pipe thickness: 12 mm
• Auger leaf thickness: 10 mm
• Side sheet thickness: 5 mm
• Base sheet thickness: 20 mm
• Weight: 5,600 kg
• Length: 7,025 mm
• Width: 2,100 mm
• Height: 3,020 mm

Applications

• Preparation and distribution of TMR in dairy and beef farms
• Mixing silage, hay, straw and concentrates for balanced rations
• Feed preparation for feedlots and large-scale livestock operations
• Optional weighing and rear loader configurations for on-site efficiency
