Hydraulic lifter for tractor

Overview

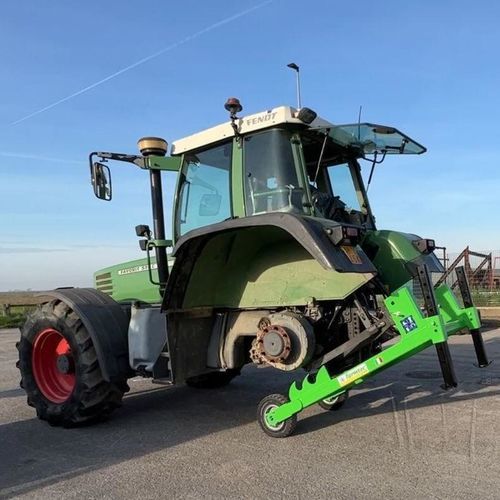

The LIFTER lift is a device for raising the rear of agricultural tractors to simplify maintenance, wheel replacement and installation of dual wheels. Connection is made via the tractor's hydraulic lift which hooks to the LIFTER frame, lifting the wheels off the ground. The raised tractor is supported on the lift's wheels; the lift has a solid tubular steel frame and allows driving on flat concrete with front-wheel drive when rear wheels are removed.

Details

• Easy to use
• Simultaneous lifting of both wheels on one axle
• Solid tubular steel frame
• Solid rubber wheels suitable for heavy loads

Dimensions / Capacity (table)
LIFTER | Width (mm) | Length (mm) | Capacity (Kg)
LIFTER | 1850 | 1100 | 5000

Characteristics / Technical specifications

• Model: LIFTER
• Width (mm): 1850
• Length (mm): 1100
• Capacity (Kg): 5000
• Solid tubular steel frame
• Solid rubber wheels designed for heavy loads
• Hydraulic connection to tractor for lifting and hooking to the LIFTER frame
• Simultaneous lifting of both wheels on a single axle
• Allows driving on flat concrete surface without rear wheels when front-wheel drive is active
• Designed to facilitate maintenance, wheel replacement and installation of dual wheels
