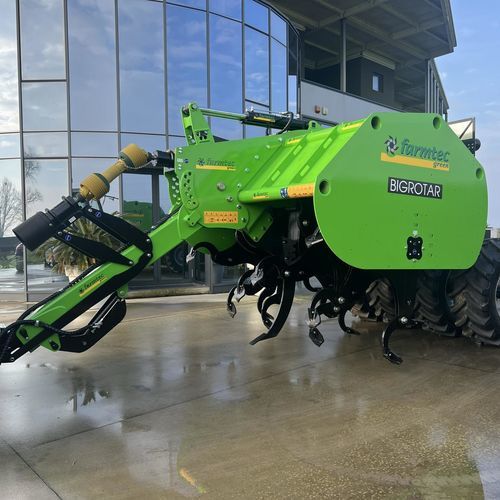

Rotary plough BIGROTAR series

discmounteddepth control

Product name
BIGROTAR - Rotary plough

Overview
The BIGROTAR rotary plough is designed for deep soil mixing and loosening on poplar plantations, orchards, vineyards and vegetable crops. It regenerates soils with residue issues and achieves working depths up to 150 cm, supporting deep tillage and soil remediation.

Versions

• BIGROTAR G — trailed version for tractors 200–500 HP; maximum working depth 150 cm
• BIGROTAR H — mounted version for tractors 250–500 HP; maximum working depth 110 cm

Standard configuration - BIGROTAR H

• Universal 3rd and 4th category hitch
• PTO usable at 1000 rpm; PTO shaft with automatic clutch
• Rear cage roller Ø 800
• Central subsoiler

Standard configuration - BIGROTAR G

• Towing eye attachment
• PTO usable at 1000 rpm; PTO shafts
• Four rear rubber wheels with depth adjustment
• Central subsoiler

Details

• Central gearbox for uniform transmission
• Central subsoiler included for deep loosening
• BIGROTAR H: cage roller for consolidation
• BIGROTAR G: four rear wheels for depth control
• Set of hoes: 32 elements

Configuration on request

• Automatic rear roller retraction
• Table kit with lights

Model specifications
Model | Width cm | Maximum working depth cm | No. hoes | Weight Kg
BIGROTAR H 110 | 300 | 110 | 32 | 4650
BIGROTAR G 150 | 300 | 150 | 32 | 6360

Technical specifications

• Product family: BIGROTAR series
• Intended use: deep mixing and loosening; suitable for poplar plantations, orchards, vineyards and vegetable crop soil regeneration
• Available versions: G (trailed) and H (mounted)
• Working width: 300 cm (both models)
• Maximum working depth: up to 150 cm (series)
• Number of hoes: 32 (both models)
• Weights: H 110 = 4650 Kg; G 150 = 6360 Kg
• PTO: usable at 1000 rpm; PTO shaft with automatic clutch (H)
• Attachment: universal 3rd/4th category hitch (H); towing eye (G)
• Rear equipment: cage roller Ø 800 (H); four rubber wheels with depth adjustment (G)
• Central subsoiler included
• Optional: automatic rear roller retraction; table kit with lights
• Recommended tractor power: 200–500 HP (G), 250–500 HP (H)
