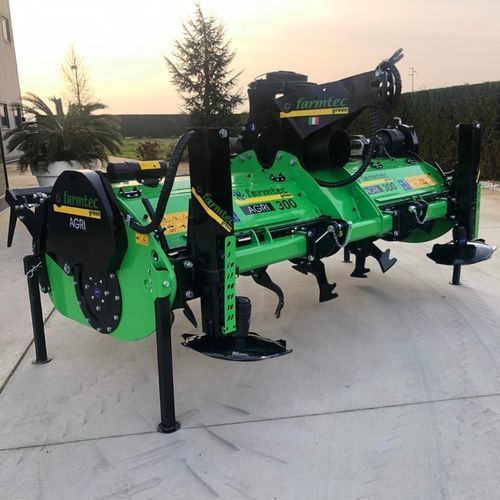

Rotary plough AGRI series

discmountedfolding

Product overview
The AGRI rotary plough is designed for tractors from 200 to 300 HP and operates on all soil types and in varied weather up to a maximum working depth of 45 cm. Hoes with a special profile break up the soil without forming a working sole and mix residues evenly across the entire worked profile. Efficient use of the tractor power delivers higher productivity than a traditional plough, with lower fuel consumption. The machine is also available in the D version with double transmission for tractors from 250 to 500 HP and in the P version with folding frame for tractors from 300 to 600 HP.

Standard configuration

• Universal 3rd-category hitch
• Universal 3rd and 4th-category hitch (only for AGRI-P)
• PTO usable at 750/1000 rpm
• Rear rake
• Single depth control discs
• Rear power take-off
• Double transmission (only for AGRI-D and AGRI-P)
• Transversal PTO shaft with bolt limiter
• Universal PTO shaft with disc limiter (only for AGRI-D)
• Transversal PTO shaft with bolt limiter (only for AGRI-P)

Configuration on request

• Hydraulic system on rear rake
• Hydraulic system on single depth control discs
• Bonnet protection plastics
• Rear PTO (only for AGRI-D)
• Complete subsoiler with support
• Rotary harrow or tiller attachment kit
• Transversal PTO shaft with automatic clutch
• Transversal PTO shaft with automatic clutch (only for AGRI-P)
• Hoes with wear‑resistant material coating
• Table kit with lights

Models table
Model | Working width (cm) | Width on the road (cm) | Maximum working depth (cm) | No. hoes | Weight (Kg)
AGRI 300 | 300 | 320 | 40 | 22 | 2130
AGRI 350 | 350 | 370 | 40 | 26 | 2310
AGRI 400 | 400 | 420 | 40 | 30 | 2490
AGRI 300 D | 300 | 320 | 40 | 22 | 2480
AGRI 350 D | 350 | 370 | 40 | 26 | 2660
AGRI 400 D | 400 | 420 | 40 | 30 | 2840
AGRI 450 P | 450 | 300 | 40 | 36 | 4280
AGRI 600 P | 600 | 300 | 40 | 44 | 4890

Technical specifications

• Maximum working depth: 45 cm
• Recommended tractor power: base range 200–300 HP; AGRI-D: 250–500 HP; AGRI-P: 300–600 HP
• Hoes with special profile to avoid working sole and ensure even residue mixing
• PTO options: rear PTO, transversal PTO shafts, universal PTO shaft
• Single depth control discs and rear rake standard
• Double transmission available on AGRI-D and AGRI-P
• Optional hydraulic systems, protection plastics, subsoiler and attachment kits available on request
