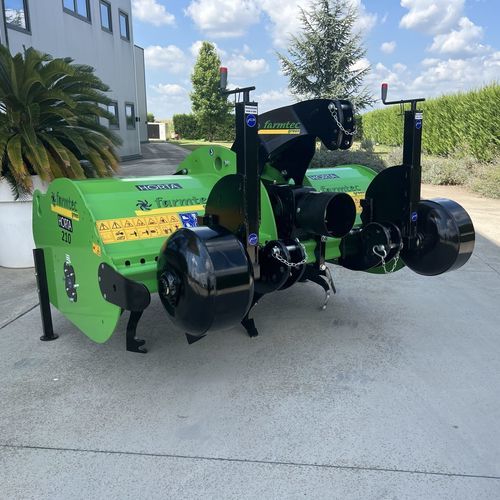

Depth control plough HORTA series

discmountedrotary

Product overview
The HORTA rotary plough is designed for greenhouse and intensive field work. For tractors from 60 to 200 HP, it adapts to varied soils and weather conditions. A central gearbox provides optimal power transfer for effective tillage up to 60 cm depth. The exclusive Farmtec Green hoe system breaks and turns the soil, removes compacted layers and improves soil structure to support uniform crops and consistent yields.

Details

• Rear rake
• Central gearbox
• Front depth adjustment sleds
• Farmtec Green-design hoe
• Central subsoiler

Standard configuration

• Universal 2nd-category hitch
• PTO usable at 540 / 750 / 1000 rpm
• Rear rake
• Front depth adjustment sleds
• Central subsoiler
• PTO shaft with bolt limiter

Configuration on request

• Rear leveling bonnet
• Hydraulic system on rear bonnet
• Hydraulic system on rear rake
• PTO shaft with automatic clutch
• Bonnet protection plastics
• Hoes with wear‑resistant material coating
• Single depth control discs
• Hydraulic system on single depth control discs
• Front depth-adjustment balloon wheels
• Front tight balloon wheels
• Table kit with lights

Model list (table)
Model | Width (cm) | Maximum working depth (cm) | No. of hoes | Weight (Kg)
HORTA 170 | 170 | 60 | 12 | 1190
HORTA 190 | 190 | 60 | 16 | 1190
HORTA 210 | 210 | 60 | 16 | 1420
HORTA 250 | 250 | 60 | 20 | 1620
HORTA 300 | 300 | 60 | 24 | 1870
HORTA 360 | 360 | 60 | 24 | 210

Working depth
Maximum working depth: 60 cm

Technical specifications

• Recommended tractor power: 60–200 HP
• Maximum working depth: 60 cm
• Central gearbox for optimal energy transfer
• Universal attachment: Category 2
• PTO compatible speeds: 540 / 750 / 1000 rpm
• PTO shaft options: bolt limiter (standard) or automatic clutch (on request)
• Standard equipment: rear rake, front depth adjustment sleds, central subsoiler
• Optional equipment: hydraulic systems (rear bonnet, rear rake), bonnet protection plastics, wear‑resistant coating for hoes, single depth control discs (with optional hydraulic control), front balloon wheels, lighting kit
• Available working widths (models): 170 cm, 190 cm, 210 cm, 250 cm, 300 cm, 360 cm
• Number of hoes by model: from 12 (HORTA 170) up to 24 (HORTA 300 / 360)
• Weights by model (as published): 1190 kg (HORTA 170 / 190), 1420 kg (HORTA 210), 1620 kg (HORTA 250), 1870 kg (HORTA 300), 210 kg (HORTA 360)
