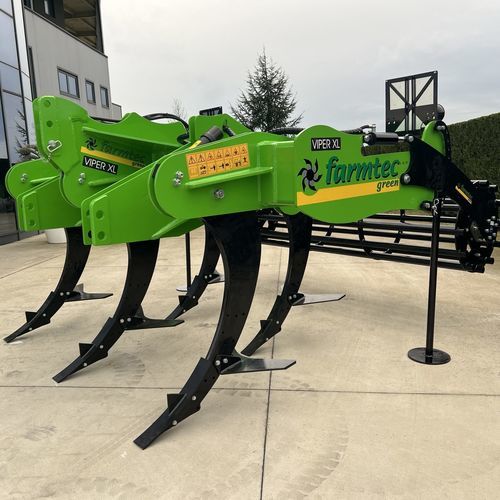

3-shank subsoiler VIPER series

5-shankwith hydraulic adjustment3-point hitch

Overview
The VIPER subsoiler is ideal for tractors from 60 to 600 HP depending on the model for working on demanding terrain. Thanks to the “V” structure of the frame and the “swan neck” anchors it can reach a high working depth without blockages, increasing performance.

Key features

• V frame structure for deep working depth
• Special-design swan neck anchors
• Reversible tip with clod breaker
• Safety bolt on anchor with stopper
• Exploders for soil breaking
• Cage roller for VIPER S
• Double roller (self-cleaning) for VIPER M and XL
• Available hydraulic or manual roller adjustment depending on model

Details / Highlights
Special design swan neck anchor
Safety bolt (A) and anchor saver with stopper (B)
Double roller Viper M / XL self-cleaning
Exploders
Viper S cage roller
Frame V

Standard configuration

• Universal attachment 2nd category (only for VIPER S)
• Universal attachment 2nd and 3rd category (only for VIPER M)
• Universal attachment 3rd and 4th category (only for VIPER XL)
• Reversible tip with clod breaker
• Exploders
• Safety bolt on anchor with stopper
• Cage roller with manual adjustment (only for VIPER S)
• VIPER double roller with manual adjustment (only for VIPER M)
• VIPER double roller with hydraulic adjustment (only for VIPER XL)

Configuration on request

• Tip with wear-resistant material coating
• Exploders with wear-resistant coating (pair)
• Hydraulic roller adjustment
• Manually foldable containment flaps (only for VIPER M and XL)
• Hydraulically foldable containment flaps (only for VIPER M and XL)
• Additional anchor kit
• Table kit with lights
• Hydropneumatic version

Model list / Technical table
VIPER S
Model | Width cm | Working depth cm | Anchors | Weight Kg
VIPER S3 | 150 | 50 | 3 | 750
VIPER S5 200 | 200 | 50 | 5 | 950
VIPER S5 250 | 250 | 50 | 5 | 1050
VIPER S5 300 | 300 | 50 | 5 | 1150

VIPER M
Model | Width cm | Working depth cm | Anchors | Weight Kg
VIPER M3 | 175 | 65 | 3 | 1450
VIPER M5 | 250 | 65 | 5 | 1650

VIPER XL
Model | Width cm | Working depth cm | Anchors | Weight Kg
VIPER XL5 | 320 | 80 | 5 | 2450

Technical specifications

• Suitable tractor power: from 60 HP to 600 HP depending on model
• Frame: V-shaped frame for enhanced penetration and reduced blockages
• Anchors: swan neck anchors with safety bolt and anchor saver with stopper
• Rollers: cage roller (VIPER S); double self-cleaning roller (VIPER M and XL) with manual or hydraulic adjustment depending on model
• Standard tools: reversible tip with clod breaker, exploders
• Optional: wear-resistant coatings, hydraulic roller adjustment, foldable containment flaps, additional anchor kit, table kit with lights, hydropneumatic version
• Available model widths and weights as per model tables above
