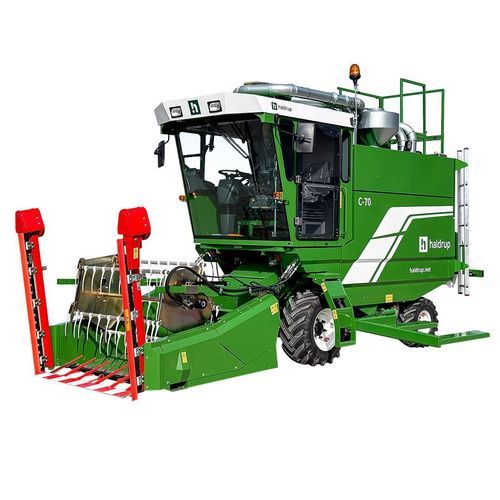

Grain plot combine C-70

multi-cropself-propelled

Overview
The HALDRUP C-70 is a parcel combine engineered for the most demanding threshing conditions. It combines a robust frame and large field wheels with an efficient pneumatic grain-transport system and three-stage shaker racks for progressive separation and cleaning. The hydrostatic drive and a 2-person air-conditioned cabin support precise operation across variable field conditions.

Key features

• Robust frame and large wheels for field stability
• Efficient pneumatic grain transport to minimise mixing
• Three powerful shaker racks (3 stages) for progressive cleaning
• Hydrostatic drive with variable speed 0–20 km/h
• Cabin for 2 persons with air conditioning and ergonomic controls
• Deutz diesel engine, water-cooled, 55 kW (75 HP); fuel tank 90 L
• Sampling and bagging capability along the parcel
• Options for cutting table and feederhouse adapted to different crops

Applications / Product areas

• Grain tank
• Cutting table
• Sampling & bagging
• Cabin
• Transport
• Air injection system
• Engine
• Threshing & cleaning
• Traction
• Feederhouse

Specifications (table)

• Cabin: for 2 persons with air conditioning
• Engine: Deutz diesel, water cooled, 55 kW (75 HP)
• Fuel tank: 90 L
• Drive: hydrostatic transmission 0–20 km/h
• Steering: hydraulic; steering wheel adjustable in height and reclining
• Front tyres: 15.0/55-17
• Rear tyres: 23 x 8.50-12 or 11.0/65-12
• Track width: from 1415 mm
• Threshing drum: 350–1800 r/min (variable); diameter 350 mm; 6 rasp bars
• Dimensions (L×W×H): from 5500 mm × from 2000 mm × from 3000 mm
• Weight: from 3600 kg

Technical specifications

• Type: Parcel combine
• Model: C-70
• Brand: HALDRUP
• Cabin capacity: 2 persons, air-conditioned
• Engine power: 55 kW (75 HP)
• Fuel tank capacity: 90 L
• Drive: Hydrostatic, 0–20 km/h
• Steering: Hydraulic, adjustable steering wheel
• Key equipment: 3-shaker racks, pneumatic grain transport, sampling & bagging, cutting table, feederhouse
