Multi-crop plot combine C-85

for grainsself-propelled

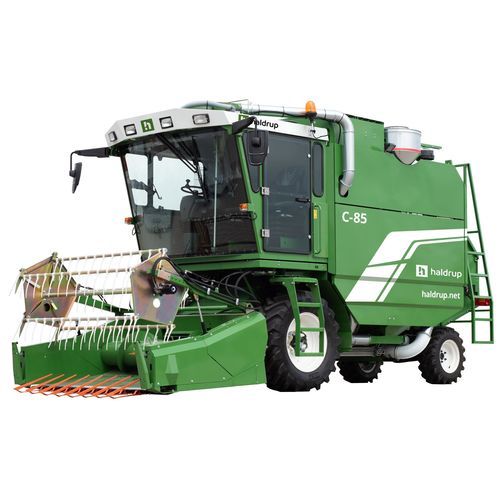

HALDRUP C-85 Plot Combine
High harvesting capacity for large-scale field trials
The HALDRUP C-85 is designed for plant breeding programs, large-scale agronomic field trials, and research environments where high throughput and stable harvesting processes are essential. Unlike light-duty plot machines, the C-85 is built for programs with high plot numbers, high-biomass crops, and demanding workloads. The result: consistent threshing performance, efficient grain separation, and reliable trial data – even under intensive harvesting conditions.

The C-85 is not designed for commercial farming or large-area harvesting, but for applications where capacity, process stability, and reproducible results are critical.

Performance Benefits

• High harvesting capacity for programs with large plot numbers
• Efficient grain-straw separation through four straw walkers
• Large separation area for stable threshing results across diverse crops
• Powerful turbo diesel engine for sustained high throughput
• Large grain tank for extended harvesting intervals
• Comfortable cabin for operator and sample technician
• HALDRUP (AMC) Assisted Machine Control as standard

Why This Matters in Field Trials
In plant breeding and agronomic field trials, consistent machine performance across hundreds of plots is essential. Variability in threshing or separation directly affects data quality and trial outcomes. The C-85 addresses this through a dedicated threshing drum, four straw walkers with a total separation area of 1.7 m², and a constant hydrostatic drive – delivering reproducible results under high biomass conditions and across extended harvesting sessions.

Engineering Advantages

• Threshing drum: Ø 350 mm for uniform crop processing
• Four straw walkers with 2,000 mm length and 1.7 m² total separation area
• Hydrostatic drive (0–20 km/h), optional all-wheel drive and differential lock
• Grain tank capacity: up to 2,800 L
• HALDRUP AMC system for machine monitoring, drill control, and reproducible settings
• Optional data acquisition: plot weighing, moisture measurement, NIRS analysis
• Ergonomic, climate-controlled cabin with clear all-round visibility

Technical Specifications

• Engine: 3.6 L turbo diesel, 80 kW / 108 HP
• Fuel tank: 200 L
• Threshing drum: Ø 350 mm
• Separation system: 4 straw walkers, 2,000 mm length
• Separation area: 1.7 m²
• Grain tank: 2,000 L / 2,800 L
• Drive: Hydrostatic, 0–20 km/h
• All-wheel drive: optional
• Differential lock: optional

Designed For

• Plant breeding programs
• Large-scale agronomic field trials
• Seed breeding companies
• Research institutes and trial stations
