Research plot combine C-50
self-propelled

Research plot combine - C-50 - Haldrup - self-propelled
Research plot combine - C-50 - Haldrup - self-propelled
Research plot combine - C-50 - Haldrup - self-propelled - image - 2
Research plot combine - C-50 - Haldrup - self-propelled - image - 3
Research plot combine - C-50 - Haldrup - self-propelled - image - 4
Research plot combine - C-50 - Haldrup - self-propelled - image - 5
Research plot combine - C-50 - Haldrup - self-propelled - image - 6
Research plot combine - C-50 - Haldrup - self-propelled - image - 7
Research plot combine - C-50 - Haldrup - self-propelled - image - 8
Research plot combine - C-50 - Haldrup - self-propelled - image - 9
Research plot combine - C-50 - Haldrup - self-propelled - image - 10
Research plot combine - C-50 - Haldrup - self-propelled - image - 11
Research plot combine - C-50 - Haldrup - self-propelled - image - 12
Add to favorites
Compare this product
Go to the Haldrup website for more information

Characteristics

Other characteristic
for research, self-propelled

Description

Overview

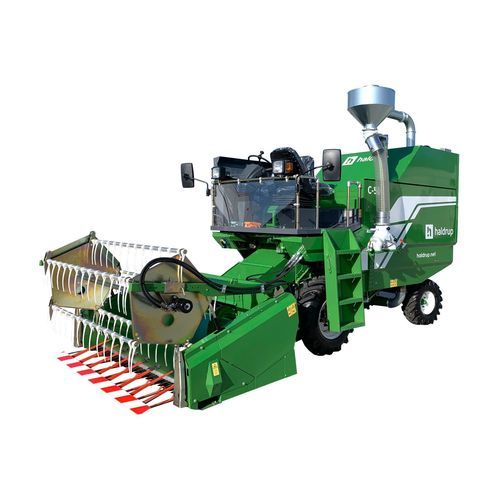

The HALDRUP C-50 is a plot combine designed for plot trials, seed production and small-scale harvesting. The operator platform provides direct access to the inclined conveyor, threshing drum and concave for fast cleaning and maintenance. As an alternative to the belt table, a cutting unit with air cleaning can be fitted.

Key components
  • Grain tank
  • Cutting table (alternative: cutting unit with air cleaning)
  • Sampling & bagging equipment
  • Operator platform with ergonomic controls
  • Air injection/transfer system
  • Deutz diesel engine (water-cooled)
  • Threshing and cleaning systems
  • Transport configuration
  • Hydrostatic traction drive
  • Feederhouse / inclined conveyor


Technical specifications
  • Engine: Deutz diesel, water-cooled, 55 kW (75 HP)
  • Fuel tank capacity: 90 L
  • Drive: Hydrostatic transmission, 0–20 km/h
  • Steering: Hydrostatic; adjustable and reclining steering wheel
  • Tyres front (drive): 15.0/55-17
  • Tyres rear (steering): 23×8.50-12 or 11.0/65-12
  • Track width: from 1415 mm
  • Dimensions (L×W×H): from 5100 mm × 1700 mm × 2600 mm
  • Threshing drum: 350–1800 rpm (stepless via variator); diameter 350 mm; 6 rasp bars
  • Weight: from 2700 kg


Applications and options
  • Intended for experimental plots, seed multiplication and small-scale farms
  • Options: cutting unit with air cleaning, sampling & bagging equipment, multiple tyre configurations
  • Design facilitates on-site cleaning and quick maintenance access
