Double plot combine CTS-95

for research

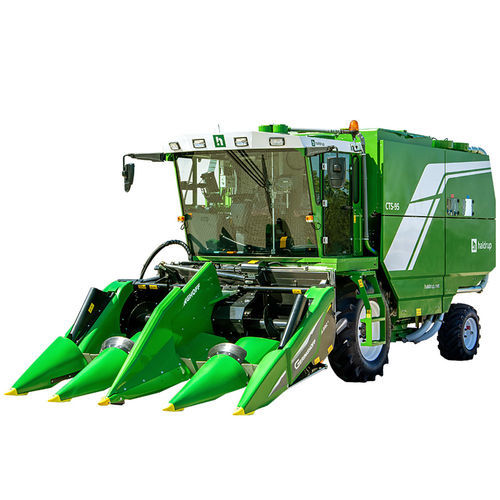

HALDRUP CTS-95 Twin-Shaker
True twin-plot harvesting without cross-contamination
he HALDRUP CTS-95 Twin-Shaker is designed for plant breeding, field trials, and research environments where plot integrity and reliable data are critical.
Unlike adapted commercial combines, the CTS-95 is engineered as a dedicated plot combine with two fully independent systems.
The result: zero mixing between plots and reproducible trial results – even under demanding harvesting conditions.
The CTS-95 is not designed for commercial farming or large-scale harvesting, but for applications where data quality and trial precision are essential.

Performance Benefits

• 100% mechanical separation of plots with no shared crop flow
• Simultaneous harvesting of two plots – increased efficiency per pass
• Reliable trial data without risk of cross-contamination
• Stable and reproducible field trial processes
• High throughput combined with research-grade precision

Why This Matters in Field Trials
In plant breeding and official variety trials, even minimal mixing between plots can compromise results and lead to incorrect conclusions.
The CTS-95 eliminates this risk at the mechanical design level: two completely independent harvesting, threshing, and cleaning systems prevent any material transfer between plots.
This ensures data integrity and protects the reliability of trial outcomes.

Engineering advantages

• Simultaneous harvesting of two plots in one pass
• Two fully independent threshing and cleaning circuits
• Twin-Shaker separation system for efficient and gentle grain separation
• Automatic cleaning cycle between plots
• Integrated high-precision plot weighing system
• Harvest Manager software for controlled trial workflows
• Hydrostatic drive (0–20 km/h), optional all-wheel drive
• 180° operator visibility with multi-camera monitoring system

Technical Specifications

• Engine: 220 HP Deutz turbo diesel engine
• Threshing units: 2 × tangential (Ø 450 mm)
• Separation system: Twin-Shaker (2 × 3 walkers)
• Grain tank: 7,000 L capacity
• Sieve adjustment: Electric with Speed-Up function
• Crop transport: Pneumatic system for controlled material flow
• Cabin: Ergonomic, climate-controlled operator cabin

Designed for

• Plant breeding programs
• Official variety trials
• Research institutes
• Seed multiplication trials
