Grain plot combine C-65

self-propelled

Overview

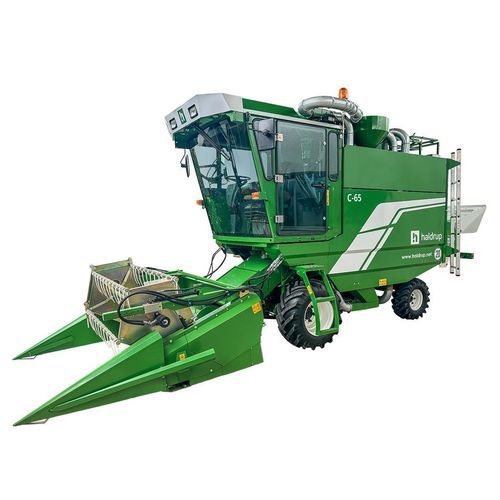

The plot combine harvester HALDRUP C-65 is specially designed for plots from 1.25 m. It is suitable for harvesting cereals, maize, rapeseed and a variety of other crops. Direct access to the incline feeder, threshing drum and concave enables quick cleaning.

Features

• Specifically designed for plots with a width from 1.25 m.
• Suitable for harvesting cereals, maize, rapeseed and other crop types.
• Direct access to incline feeder, threshing drum and concave for fast cleaning.
• Hydrostatic drive for smooth and precise operation.
• Large grain tank: largest in its size class (note from image captions).
• Sampling & bagging possible along the full plot length (note from image captions).
• Cab: largest and most comfortable in its power class with an ergonomically arranged control panel (note from image captions).

Additional product features (from image captions)

• Header: constructed for difficult harvesting conditions, suitable for low and tall crops.
• Air-conveying system: enables contamination-free grain transfer.
• Threshing and cleaning system: delivers optimal threshing and cleaning results across crop types.
• Engine: fitted DEUTZ diesel engine meets country-specific emission requirements (note from image captions).
• Transport: compact design allows easy transport and deployment (note from image captions).

Characteristics / Technical specifications

• Cab: designed for 2 persons with air conditioning.
• Engine: DEUTZ diesel, water-cooled, 55 kW (75 hp).
• Fuel tank: 90 L.
• Drive: hydrostatic drive, 0–20 km/h.
• Steering: hydrostatic steering; steering wheel adjustable in height and tilt.
• Drive tyres: 15.0/55-17.
• Steering tyres: 23 x 8.50-12 or 11.0/65-12.
• Track width: from 1415 mm.
• Threshing drum: speed 350–1800 rpm, steplessly adjustable via variator; diameter 350 mm; number of rasp bars: 6.
• Concave: wire spacing 7 mm – 11 mm – 26 mm.
• Shakers: with 3 drop stages.
