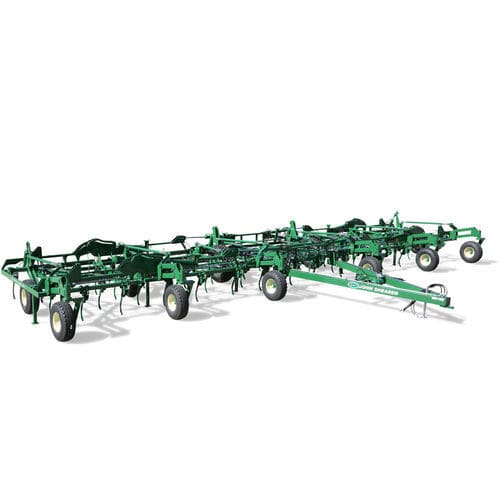

Towed field cultivator MK3

foldingspring tinewith hydraulic adjustment

Following many years of success in the field, this is the latest model of our popular 5 row Seeder Bar. Major changes include, a revised main frame and wings, re-engineered wing fold and a completely new hydraulic tyne assembly. The new low profile frame allows the fitting of John Shearer hydraulic tynes or Double Disc Opener assemblies for maximum flexibility. ESSENTIALS -Low profile 100mm x 100mm main frame -Available with either, hydraulic tyne assemblies -Optional in-cab digital tyne breakout pressure gauge -New folding configuration; four individual cylinders -Sowing spacings, from 200mm (8”), Double disc openers from 254mm (10”) -Revised hydraulic loading system -800H hydraulic tyne assembly -Narrow & standard centre models are available MAIN FRAME The main frame includes 5 row 100mm x 100mm mounting ranks, of which front and rear centre section beams are 9mm for additional strength. The new low profile design frame allows easier fitment of air kits and other bolt–on accessories. HYDRAULIC LOADING Larger models are standard with a 20 litre gas accumulator. This provides protection from pressure overload during working. In-line valves, fitted to the hydraulic circuitry, assist in controlling the recoil speed and force of the tynes as they return to the work position. A digital tyne breakout pressure gauge, fitted in the tractor cab, is an option.
