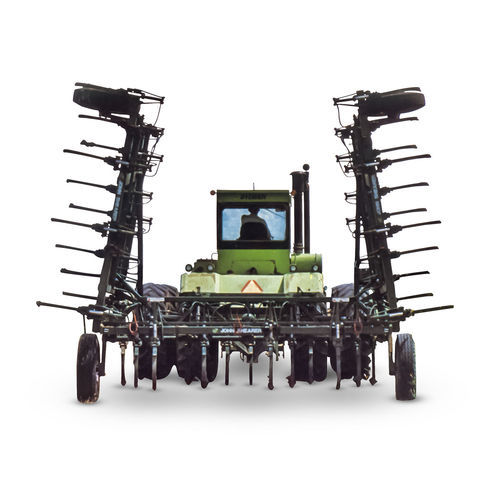

Towed stubble cultivator 3721304

foldingwith hydraulic adjustmentchisel

The machine is designed for primary and secondary tillage in trash farming, stubble mulch cultivation and chisel ploughing to break up hard pans. It is also able to be adapted for trashseeding. ESSENTIALS -Proven robust construction -Level lift for equal working depth -Narrow transport width of 5.5m (18′) -High flotation tyres are standard -Tyne breakout force adjustable from 0.4kn (100lb) to 4.4kn (1000lb) -Edge-on Tyne, 50mm x 32mm (2″ x 1¼”) ROBUST AND ADAPTABLE The Shearer Folding Wing Trashworker is designed for low maintenance with minimal moving parts. Greasable hardened pins and bushes are fitted on all critical, high load pivots. A narrow, 254mm (10″) tyne spacing option is available for summer crop sowing. These models also come with an upgraded 10L gas accumulator as standard. For 12″ models, this feature is optional, in lieu of the standard 4L accumulator. Excellent trash clearance, wide lead between rows and a proven tyne layout make this machine an impeccable trashworker. In combination with an airseeder, these models can also be employed in trashseeding. 1000LB HYDRAULIC TYNE ASSEMBLY The John Shearer 1000lb Hydraulic Tyne Assembly is tough and reliable and offers on the go tyne breakout pressure adjustment from the tractor seat. Breakout pressure is adjustable from 0.4kN (100lb) up to 4.4kN (1000lb). The easy to fit clamp on design mounts onto 100mm x 100mm (4” x 4”) heavy duty RHS beams.
