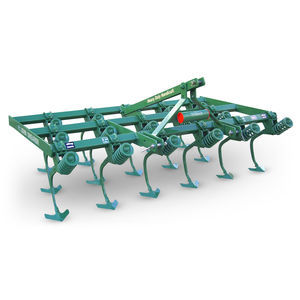

Towed field cultivator MK3

rigid tinefoldingwith hydraulic adjustment

John Shearer’s range of trashworkers have built a good reputation for their utility in predominately summer cropping areas. The new, hydraulic Mk3 Trashworker is an addition to the current range incorporating features to further improve ground following. ESSENTIALS -5 row main frame, featuring 9mm, 100mmx100mm RHS on front & rear beams -Front castoring wheels fitted with high flotation tyres -Long 5.2m (17’) fully floating hitch -Folding operation incorporates four cylinders; 2 front & rear -Row spacing options include, 254mm (10”), 305mm (12”) & 333mm (13.1”) -Two tyne options, 1000lb breakout & straight adjustable -Optional “in cab” digital tyne breakout pressure gauge IN-BUILT STRENGTH In the Shearer tradition, this Trashworker is built for structural integrity. Axles, castoring assemblies, floating hitch, frames and wings were all given special attention to ensure long service life. Greasable hardened pins & bushes fitted in high load pivot points are just one such example of our design philosophy. EXCELLENT TRASHFLOW The four mounting beams are spaced to provide good clearance between rows to promote better trashflow. HIGH FLOTATION TYRES For improved ground following and transport, high flotation tyres are a standard feature. The 3.34m model has 215/85×16”. SIMPLE LEVELLING ADJUSTMENT There are no phasing cylinders. Two double acting lift cylinders fitted to the centre section rockshaft, are mechanically linked to the wings and control the wheels. Screw adjustable layshafts (links) control levelling across the working width of the machine and from front to rear.
