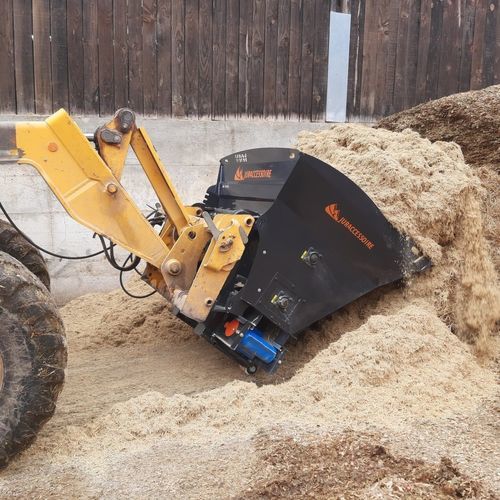

Mounted straw blower

beddingfor sawdustsand

Description
Cubicle bedding spreader for farm loader or tractor.
Distribution hopper for short-straw, sand, compost, phase-separator, dolomite, sawdust.
Projects left or right (up to 2.5 m depending on material).
The Bedding M, XL and XXL consist of an agitator roller and a feed roller, with a left/right rubber conveyor belt.
The "Profi" version is equipped with 2 feed rollers + left/right conveyor.

Key features

• Efficiency and structural strength
• Wide range (from 900 litres to 3600 litres)
• "Profi" version allows distribution of lime/straw/water mixtures

Technical specifications

• Internal loading width: from 1.25 to 2.45 m
• Internal loading length: from 1.35 to 1.65 m
• Height: from 1.75 to 2.25 m
• Unladen weight: from 380 to 1150 kg
• Minimum power required: from 30 to 110 hp
• Coupling included in standard price: Euro or Manitou (depending on model)
• Conveyor belt width: from 30 to 50 cm
• Minimum carrier weight (loader, telehandler ...): from 1,500 to 6,500 kg
• Hydraulic and electrical supply required as standard: 1 double-acting (drain) + 1 free return
• Projection distance (depending on straw, flow and hydraulic pressure, lift height...): from 0 to 2.50 m
