Mounted straw blower BALE MASTER

beddingfor round balesfor square bales

Short description

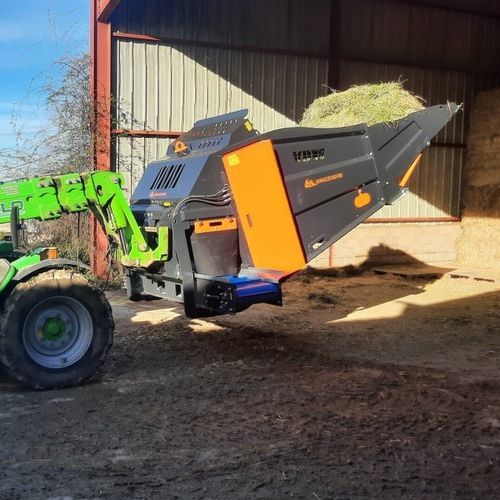

Cubicle straw spreader designed for telehandlers or large front loaders. Accepts round or square bales with a maximum diameter of 140 cm. Feeds long or short straw and projects by conveyor belt to the right or left.

Description
The BALE MASTER bedding spreader is built for simple, low-dust straw distribution without a turbine or chopping system. Projection distance is adjustable from 0 to 2.50 m depending on straw type, feed rate and hydraulic pressure. Two reversible detangling rollers and an adjustable, reversible conveyor chain ensure reliable feeding.
Available in a compact version (1.70 m internal length) or a long version (2.77 m internal length). Optional raiseable belt for central bedding and optional lateral belt shift for side distribution.

Key advantages

• No additional dust from a turbine (no turbine).
• Handles round and square bales.
• Available in a foldable/short version for reduced transport length.

Technical specifications

• Loading internal width: 2.20 m
• Loading internal length: 2.95 m
• Height: 1.74 m
• Unladen weight: approx. 1000–1200 kg (see technical sheet)
• Minimum required power: 70 hp
• Internal box width: 1.40 m
• Minimum carrier weight (loader, telehandler...): 4500 kg
• Standard hitch included: Manitou, CAT TH, JCB QFIT, NH, Merlo, Bobcat
• Other hitches: available as option
• Rear Teflon stabilization wheel: standard
• Standard hydraulic/electrical supply: 1 double-acting (drain) + 1 free return + 1 x 25 Amp socket
• Projection distance (depending on straw, flow and hydraulic pressure, lift height...): 0 to 2.50 m
• Control via 3-function magnetic single-lever: included
