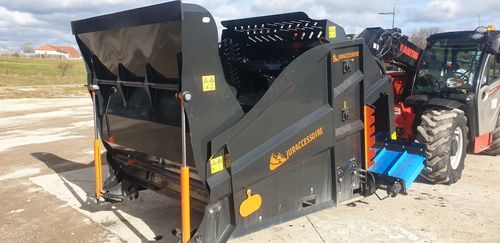

Mounted straw blower BALE MASTER XL

beddingfor round balesfor square bales

Summary
Stall bedding spreader BALE MASTER XL. Box length 2.70 m. Hydraulic folding version. Shorter configuration allows retaining the whole bale while maintaining excellent maneuverability.

Overview
The BALE MASTER bedding spreader is designed for square or round bales up to 1.40 m in diameter. Accepts long-straw and short-strand bedding. Adjustable projection distance from 0 to 2.50 m depending on straw type, hydraulic flow and lift height. No turbine; the unit does not chop the straw (relatively less dust). Available in a compact version (1.70 m internal) or in a long version (2.77 m internal). Two reversible detangling rollers. Adjustable and reversible conveyor chain. Liftable belt for central bedding optional. Option for lateral belt shift available.

Technical specifications / characteristics

• VERSION: 170 / 170 + hydraulic door option
• Overall width: 2.20 m / 2.20 m
• Overall length: 2.95 m / 2.95 m
• Overall height: 1.74 m / 1.74 m
• Internal box width: 1.40 m / 1.40 m
• Total useful internal box length: 1.70 m / -
• Total useful internal box length with door open: - / 2.77 m
• Useful internal box length with door folded: - / 1.40 m
• Total empty weight: 1,000 kg / 1,240 kg
• Square bale flat: Yes
• Round bale (up to 1.40 m max): Yes
• Minimum required power: 70 HP
• Minimum hydraulic flow required: 70 l/min minimum
• Minimum carrier weight (loader, telehandler…): 4,500 kg
• Mounting included in standard price: Manitou, CAT TH, JCB QFIT, NH, Merlo, Bobcat
• Other mountings possible (MX, Giant, Thaler, Weidemann, Schaeffer, 3-point, Matbro …): Yes, optional
• Rear Teflon stabilising wheel on ground: Standard
• Hydraulic and electrical supply required in standard version: 1 double-acting (drain), 1 free return, 1 x 25 Amp socket
• Projection distance (depending on straw, hydraulic flow, belt speed, lift height): 0 to 2.50 m
• Control by 3-function magnetic single-lever: Included
• Standard color: Grey and orange
