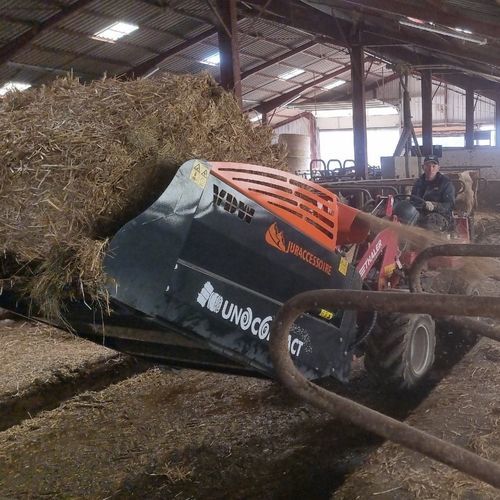

Mounted straw blower UNO COMPACT

beddingfor square bales

Short description
Square-bale straw blower UNO Compact for low-power carriers (from 25 hp). Compact and light design for use with small loaders and in confined spaces.

Description
The UNO COMPACT straw blower features a single turbine, two reversible detangling rollers and a left-side discharge blower with electric height adjustment. Its compact inlet requires that square bales be pre-processed by the detangling rollers to feed material into the turbine. This reduces lifting force and the required airflow to project straw, allowing controlled blowing into bedded areas and cubicles (projection up to 9 m depending on straw type and machine settings).

Detailed description
Loading inner width: 1.25 m
Length: 2.25 m
Height: 1.20 m
Diameters of the 2 detangling rollers: 34 and 43 cm
Empty weight with Euro hitch: 480 kg
Square bales only: 1/3 or 1/2 square bale (placed on side)
Minimum required power: 25 hp (recommendation: from 35 hp)
Minimum carrier weight (loader, telehandler ...): 1,600 kg
Standard included hitch: Euro
Other hitches: available
Standard hydraulic and electrical supply required: 1 double-acting circuit, 1 drain (open return 1/2" or 3/8"), 1 electrical line 25 A
Articulating chute: not available
Electrically raisable chute: included
2 detangling rotors: included
Simple electric control box for the chute: included
Projected distance (depends on straw, flow and hydraulic pressure, lift height...): 1 to 9 m (6 to 7 m with 38 hp and typical wheat straw)

Technical specifications

• Loading inner width: 1.25 m
• Length: 2.25 m
• Height: 1.20 m
• Detangling roller diameters: 34 and 43 cm
• Empty weight with Euro hitch: 480 kg
• Square bales only: 1/3 or 1/2 square bale (placed on side)
• Minimum required power: 25 hp (recommended from 35 hp)
• Minimum carrier weight: 1,600 kg
• Included hitch: Euro
• Other hitches: available
• Hydraulic & electrical supply: 1 double-acting circuit, 1 drain (open return 1/2" or 3/8"), 1 electrical line 25 A
• Articulating chute: not available
• Electrically raisable chute: included
• 2 detangling rotors: included
• Electric control box: included
• Projected distance: 1 to 9 m (6 to 7 m with 38 hp and typical wheat straw)
