Mounted bale unroller PIC 208

beddingwith chainround

Summary

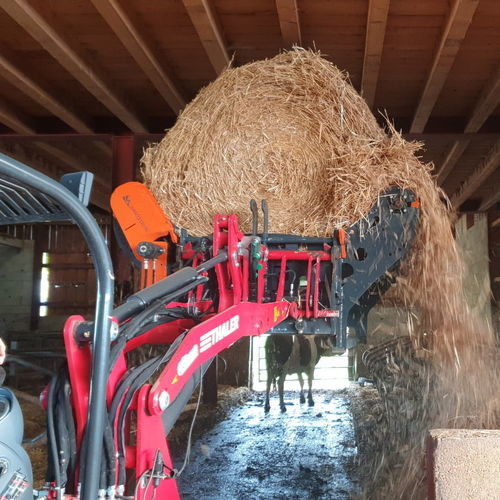

Round bale unroller JURACCESSOIRE. Right- and left-side operation. Can be mounted front or rear. Full front/rear and left/right symmetry. Ideal for hay, aftermath (regrowth), wrapped bales and straw. Close-mounted hitch design and reduced overhang to fit small tractors, telehandlers or farm loaders. Manufactured in the Jura massif, Doubs region.

Features and variants
Standard Euro hitch; 3-point or other hitch options available on request. Available in extra-large version for large telehandlers and/or large bales from 1.80 m to 2.30 m. Available with reinforced chain for wrapped bales or for use on large telehandlers or heavy tractors. Invertible and reversible to break up dense cores or to unroll a bale placed the wrong way.

Key benefits

• Perfect unrolling of soft cores (fixed chamber) or hard cores (variable chamber).
• High-quality unrolling for small aftermaths, stuck hay or large hay. Short and lightweight: ideal for farm loaders or small tractors.
• Invertible: useful for breaking up stubborn cores.
• Reversible: ideal for unrolling a bale placed the wrong way.
• Artisanal, Franche-Comté manufacture, made to measure.

Detailed description (table)
Standard outer width: 2.08 m
Overall length: 1.90 m
Overall height: 1.15 m
Unladen weight with standard chain: 635 kg (ideal for farm loader)
Standard colour: Grey and orange
Standard hitch: Euro
Standard hydraulic supply: 1 double-acting (drain)
Maximum round bale diameter (standard): 1.80 m
Tensile strength of standard chains: 80,000 N/pair
Standard chain roller diameter: 32 mm
Spike tooth dimensions: 1200 x 45 mm
Unrolling direction (respect bale wrapping direction): Right and Left. Front and rear hitching.

Technical specifications / characteristics

• Standard outer width: 2.08 m
• Overall length: 1.90 m
• Overall height: 1.15 m
• Unladen weight (standard chain): 635 kg
• Standard colour: Grey and orange
• Standard hitch: Euro (3-point or other options on request)
• Hydraulic supply: 1 double-acting (drain)
• Maximum round bale diameter (standard): 1.80 m
• Tensile strength of standard chains: 80,000 N/pair
• Standard chain roller diameter: 32 mm
• Spike tooth dimensions: 1200 x 45 mm
• Functions: invertible, reversible, front/rear and left/right symmetry
• Variants: extra-large version for large bales (1.80 m to 2.30 m); reinforced chain version for wrapped bales or use on large telehandlers/heavy tractors
• Manufacture: artisanal, made to measure, manufactured in the Jura massif (Doubs)
