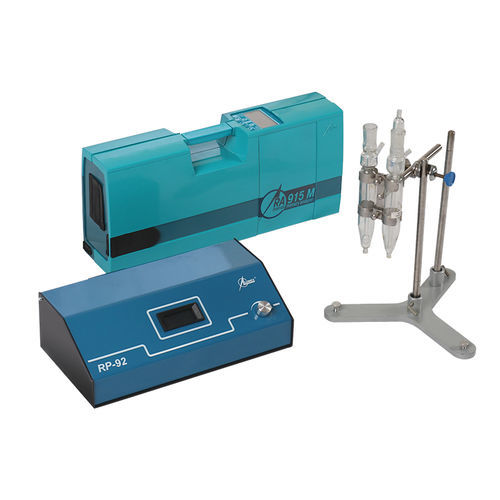

Air analyzer RA-915M / RP-92

waterurineportable

About
The RA-915M analyzer combined with the RP-92 attachment is designed to determine mercury concentrations in liquid samples and digested solid samples down to ultra-low sub‑ppt levels. The set implements the conventional Cold Vapor (CV) technique with acid digestion and chemical reduction of ionic mercury to atomic Hg(0). RA-915M provides a wide working range using either the multipath or single-path cell and can also operate standalone for real-time ambient and indoor air monitoring. Additional attachments extend functionality.

Principle of operation
Cold Vapor technique followed by atomic absorption spectrometry at 254 nm with Zeeman background correction. This combination yields interference-free, highly selective and sensitive measurements without matrix effects.

Features and benefits

• Selective analysis of water, solutions, and digested solids and biosamples
• Ultra-low sub‑ppt limit of detection
• Wide dynamic measurement range
• Stable calibration and repeatable results
• No compressed gases required; laboratory air is used as carrier gas
• No pre-concentration on gold traps required
• Compatible with standard sample pre-treatment techniques
• Portable RA-915M enables both laboratory and field/ambient monitoring
• Low operating and maintenance costs

Applications
Suitable for environmental and geochemical studies, occupational safety and health, life sciences and clinical screening. Mercury is determined in:

• drinking water, fresh and seawater, wastewater and effluents
• atmospheric precipitation
• surface washouts for demercurization control
• urine and biological samples (hair, blood, tissues) for population screening and clinical diagnostics
• solid samples after digestion

Standards
The Cold Vapor technique complies with ISO 12846, EPA 245.1, ASTM D3223, AOAC 977.22 and other national/international standards.

Warranty
The set is covered by a full 1-year warranty.

Services
Installation and commissioning at customer site, application support and operator training, and configuration to meet customer-specific requirements are provided by certified service engineers and application specialists.

Technical specifications

• Measurement principle: Cold Vapor combined with atomic absorption spectrometry at 254 nm with Zeeman background correction
• Detection limit: 0.1 ppt (ng/L)
• Sampling volume: 1–20 mL
• Analysis time: 1–2 min
• Power supply: 100–240 VAC, 50–60 Hz
• Power consumption: 35 W (RA-915M analyzer); 20 W (RP-92 attachment)
• Dimensions: 470 × 110 × 220 mm (RA-915M); 360 × 225 × 125 mm (RP-92)
• Weight: 7 kg (RA-915M); 7 kg (RP-92)
