Breather plug TCF/Zfilling
Add to favorites
Compare this product
Characteristics
- Type
- breather
- Applications
- filling
Description
Product

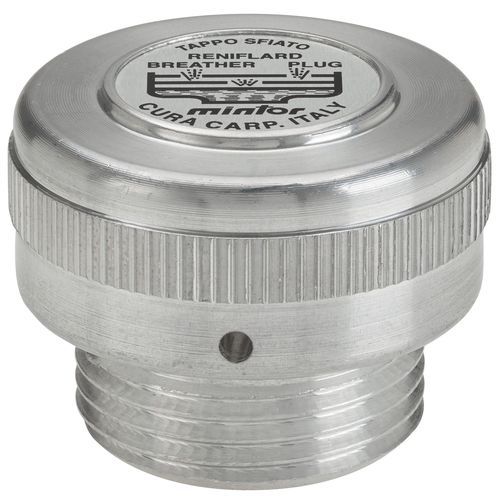

Filling plug with breather
Description
Threaded plug in aluminium alloy without treatment, with knurled round head for hand-tightening. Hole for venting internal pressure, free vented diameter from 2 mm to 3.5 mm. For application only on the upper part of the crankcase, away from moving parts. For applications requiring extra-tight sealing, type TSFT/N is recommended. Available on request with anodizing treatment.
Important
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.
Technical Info - GAS ISO 228
TYPE | CODE | THREAD | h | f | d | WEIGHT (g)
TCF/Z0G | 1GCFZ00A | G 1/8" | 13.5 | 8 | 20 | 11
TCF/Z1G | 1GCFZ10A | G 1/4" | 12 | 8 | 22 | 13
TCF/Z2G | 1GCFZ20A | G 3/8" | 13.5 | 10 | 26 | 18
TCF/Z3G | 1GCFZ30A | G 1/2" | 16.5 | 10 | 30 | 33
TCF/Z4G | 1GCFZ40A | G 3/4" | 21.5 | 12 | 40 | 72
TCF/Z5G | 1GCFZ50A | G 1" | 21.5 | 14 | 45 | 95
TCF/Z6G | 1GCFZ60A | G 1" 1/4 | 21.5 | 15 | 55 | 146
TCF/Z7G | 1GCFZ70A | G 1" 1/2 | 21.5 | 15 | 55 | 96
TCF/Z8G | 1GCFZ80A | G 2" | 21.5 | 17 | 70 | 143
Technical Info - MB METRIC
TYPE | CODE | THREAD | h | f | d | WEIGHT (g)
TCF/Z0M | 1MCFZ00A | 10 x 1 | 12 | 8 | 20 |
TCF/Z1M | 1MCFZ10A | 14 x 1.5 | 12 | 8 | 22 | 13
TCF/Z2M | 1MCFZ20A | 16 x 1.5 | 12 | 10 | 26 |
TCF/Z3M | 1MCFZ30A | 18 x 1.5 | 12 | 10 | 26 |
TCF/Z4M | 1MCFZ40A | 20 x 1.5 | 15 | 10 | 30 | 31
TCF/Z5M | 1MCFZ50A | 22 x 1.5 | 15 | 10 | 30 |
TCF/Z6M | 1MCFZ60A | 24 x 2 | 16.5 | 12 | 36 |
TCF/Z7M | 1MCFZ70A | 30 x 2 | 20 | 12 | 42 |
TCF/Z8M | 1MCFZ80A | 33 x 2 | 21.5 | 14 | 45 |
Characteristics / technical specifications
Filling plug with breather
Description
Threaded plug in aluminium alloy without treatment, with knurled round head for hand-tightening. Hole for venting internal pressure, free vented diameter from 2 mm to 3.5 mm. For application only on the upper part of the crankcase, away from moving parts. For applications requiring extra-tight sealing, type TSFT/N is recommended. Available on request with anodizing treatment.
Important
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.
Technical Info - GAS ISO 228
TYPE | CODE | THREAD | h | f | d | WEIGHT (g)
TCF/Z0G | 1GCFZ00A | G 1/8" | 13.5 | 8 | 20 | 11
TCF/Z1G | 1GCFZ10A | G 1/4" | 12 | 8 | 22 | 13
TCF/Z2G | 1GCFZ20A | G 3/8" | 13.5 | 10 | 26 | 18
TCF/Z3G | 1GCFZ30A | G 1/2" | 16.5 | 10 | 30 | 33
TCF/Z4G | 1GCFZ40A | G 3/4" | 21.5 | 12 | 40 | 72
TCF/Z5G | 1GCFZ50A | G 1" | 21.5 | 14 | 45 | 95
TCF/Z6G | 1GCFZ60A | G 1" 1/4 | 21.5 | 15 | 55 | 146
TCF/Z7G | 1GCFZ70A | G 1" 1/2 | 21.5 | 15 | 55 | 96
TCF/Z8G | 1GCFZ80A | G 2" | 21.5 | 17 | 70 | 143
Technical Info - MB METRIC
TYPE | CODE | THREAD | h | f | d | WEIGHT (g)
TCF/Z0M | 1MCFZ00A | 10 x 1 | 12 | 8 | 20 |
TCF/Z1M | 1MCFZ10A | 14 x 1.5 | 12 | 8 | 22 | 13
TCF/Z2M | 1MCFZ20A | 16 x 1.5 | 12 | 10 | 26 |
TCF/Z3M | 1MCFZ30A | 18 x 1.5 | 12 | 10 | 26 |
TCF/Z4M | 1MCFZ40A | 20 x 1.5 | 15 | 10 | 30 | 31
TCF/Z5M | 1MCFZ50A | 22 x 1.5 | 15 | 10 | 30 |
TCF/Z6M | 1MCFZ60A | 24 x 2 | 16.5 | 12 | 36 |
TCF/Z7M | 1MCFZ70A | 30 x 2 | 20 | 12 | 42 |
TCF/Z8M | 1MCFZ80A | 33 x 2 | 21.5 | 14 | 45 |
Characteristics / technical specifications
- Model/Series: TCF/Z
- Material: aluminium alloy (without treatment); anodizing available on request
- Head: knurled round head for hand-tightening
- Vent: hole for venting internal pressure; free vented diameter from 2 mm to 3.5 mm
- Recommended application: only on the upper part of the crankcase, away from moving parts
- Optional: for extra-tight sealing use type TSFT/N
- Installation limitation: not designed to operate in an inverted position
- Available sizes/threads and dimensional data: see GAS ISO 228 and MB METRIC tables above (TCF/Z0G–TCF/Z8G and TCF/Z0M–TCF/Z8M)
