Breather plug TCSF/Z

filling

Product

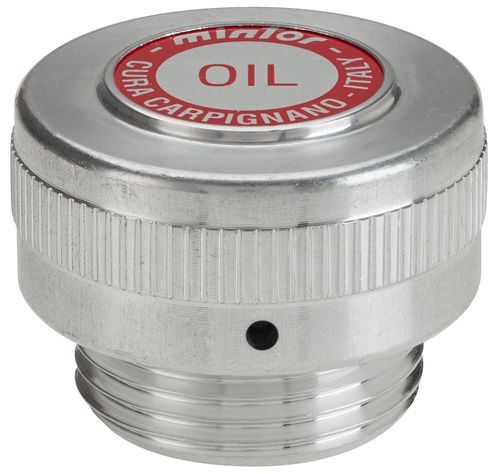

TCSF/Z - Filling plug and breather

Overview
Threaded plug in aluminium alloy (standard: no surface treatment) with knurled round head for hand-tightening. A spherical bronze internal filter and a free vent hole (diameter 2 mm to 3.5 mm) allow internal pressure venting while preventing ingress of foreign bodies during the intake stroke. Filtration degree is indicated in the tables below. The TCSF/Z is suitable for dusty environments and is recommended for use on hydraulic units.

Finishes
Available on request with anodizing treatment.

Installation note
The product is not designed to operate in an inverted position. Installation or testing in the inverted position does not comply with design specifications and may compromise the device's operation.

Technical Info - GAS ISO 228
TYPE | CODE | THREAD | h | f | d | μ | WEIGHT (g)
TCSF/Z1G | 1GSFZ10A | 1/4" | 13.5 | 8 | 22 | 40 | 14
TCSF/Z2G | 1GSFZ20A | 3/8" | 13.5 | 10 | 26 | 40 | 21
TCSF/Z3G | 1GSFZ30A | 1/2" | 16.5 | 12 | 30 | 40 | 37
TCSF/Z4G | 1GSFZ40A | 3/4" | 20 | 13.5 | 40 | 40 | 78
TCSF/Z5G | 1GSFZ50A | 1" | 21.5 | 14 | 45 | 40 | 109
TCSF/Z6G | 1GSFZ60A | 1" 1/4 | 21.5 | 16 | 55 | 200 | 154
TCSF/Z7G | 1GSFZ70A | 1" 1/2 | 21.5 | 16 | 55 | 200 | 107
TCSF/Z8G | 1GSFZ80A | 2" | 21.5 | 17 | 70 | 200 | 276

Technical Info - MB METRIC
TYPE | CODE | THREAD | h | f | d | μ | WEIGHT (g)
TCSF/Z1M | 1MSFZ10A | 14 x 1.5 | 12 | 8 | 22 | 40 | 14
TCSF/Z2M | 1MSFZ20A | 16 x 1.5 | 12 | 10 | 26 | 40 | 21
TCSF/Z3M | 1MSFZ30A | 18 x 1.5 | 12 | 10 | 26 | 40 | 23
TCSF/Z4M | 1MSFZ40A | 20 x 1.5 | 15 | 12 | 30 | 40 | 35
TCSF/Z5M | 1MSFZ50A | 22 x 1.5 | 15 | 12 | 30 | 40 | 37
TCSF/Z6M | 1MSFZ60A | 24 x 2 | 15 | 13.5 | 36 | 40 | 48
TCSF/Z7M | 1MSFZ70A | 30 x 2 | 20 | 14 | 42 | 40 | 87
TCSF/Z8M | 1MSFZ80A | 33 x 2 | 20 | 14 | 45 | 40 | (no weight listed)

Characteristics / technical specifications

• Material: aluminium alloy (no surface treatment as standard)
• Head: knurled round head for hand-tightening
• Filter: spherical bronze internal filter
• Vent hole diameter: 2 mm to 3.5 mm (free vented)
• Degree of filtration: indicated in the tables (μ column)
• Recommended use: suitable for dusty environments; recommended for hydraulic units
• Finish option: anodizing available on request
• Installation constraint: not designed for inverted operation; inverted installation/testing may impair proper function
• Available models: series TCSF/Z (GAS ISO 228 and MB METRIC versions; see dimensional and weight details in tables)
