Breather plug TSFfilling
Add to favorites
Compare this product
Characteristics
- Type
- breather
- Applications
- filling
Description
Product description

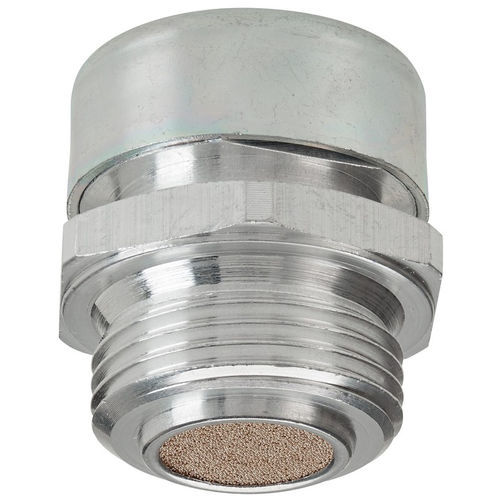

Oil filling plug with breather in aluminium alloy without surface treatment. A galvanized-steel cover and a spherical bronze internal filter vent internal pressure and prevent ingress of contaminants during the intake stroke. The TSF is particularly suitable for dusty environments and recommended for hydraulic units and cylinders.
Working temperature
-20°C to +140°C max.
Surface treatment
Available on request with anodizing.
Notes
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.
Degree of filtration
The filtration degree of the internal filter is shown in the tables below.
Technical Info - GAS ISO 228
TYPE | CODE | THREAD | d | h | f | e | μ | WEIGHT (g)
TSF1G | 1GTSF10M | 1/4" | 16.5 | 17 | 8 | 17 | 40 | 12
TSF2G | 1GTSF20M | 3/8" | 21 | 19 | 10 | 22 | 40 | 22
TSF3G | 1GTSF30M | 1/2" | 26 | 21 | 12 | 27 | 40 | 39
TSF4G | 1GTSF40M | 3/4" | 30 | 24 | 14 | 32 | 40 | 63
TSF5G | 1GTSF50M | 1" | 38 | 29 | 16 | 40 | 40 | 115
TSF6G | 1GTSF60A | 1" 1/4 | 50 | 33 | 16 | 50 | 200 | 154
TSF7G | 1GTSF70A | 1" 1/2 | 55 | 35 | 16 | 55 | 200 | 272
TSF8G | 1GTSF80A | 2" | 70 | 40 | 16 | 70 | 200 | 517
Technical Info - MB METRIC
TYPE | CODE | THREAD | d | h | f | e | μ | WEIGHT (g)
TSF1M | 1MTSF10M | 14 x 1.5 | 16.5 | 17 | 8 | 27 | 40 | 13
TSF2M | 1MTSF20M | 16 x 1.5 | 21 | 19 | 10 | 22 | 40 | 24
TSF3M | 1MTSF30M | 18 x 1.5 | 21 | 19 | 10 | 22 | 40 | 25
TSF4M | 1MTSF40M | 20 x 1.5 | 24 | 21 | 12 | 24 | 40 | 34
TSF5M | 1MTSF50M | 22 x 1.5 | 26 | 21 | 12 | 27 | 40 | 39
Characteristics / technical specifications
Oil filling plug with breather in aluminium alloy without surface treatment. A galvanized-steel cover and a spherical bronze internal filter vent internal pressure and prevent ingress of contaminants during the intake stroke. The TSF is particularly suitable for dusty environments and recommended for hydraulic units and cylinders.
Working temperature
-20°C to +140°C max.
Surface treatment
Available on request with anodizing.
Notes
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.
Degree of filtration
The filtration degree of the internal filter is shown in the tables below.
Technical Info - GAS ISO 228
TYPE | CODE | THREAD | d | h | f | e | μ | WEIGHT (g)
TSF1G | 1GTSF10M | 1/4" | 16.5 | 17 | 8 | 17 | 40 | 12
TSF2G | 1GTSF20M | 3/8" | 21 | 19 | 10 | 22 | 40 | 22
TSF3G | 1GTSF30M | 1/2" | 26 | 21 | 12 | 27 | 40 | 39
TSF4G | 1GTSF40M | 3/4" | 30 | 24 | 14 | 32 | 40 | 63
TSF5G | 1GTSF50M | 1" | 38 | 29 | 16 | 40 | 40 | 115
TSF6G | 1GTSF60A | 1" 1/4 | 50 | 33 | 16 | 50 | 200 | 154
TSF7G | 1GTSF70A | 1" 1/2 | 55 | 35 | 16 | 55 | 200 | 272
TSF8G | 1GTSF80A | 2" | 70 | 40 | 16 | 70 | 200 | 517
Technical Info - MB METRIC
TYPE | CODE | THREAD | d | h | f | e | μ | WEIGHT (g)
TSF1M | 1MTSF10M | 14 x 1.5 | 16.5 | 17 | 8 | 27 | 40 | 13
TSF2M | 1MTSF20M | 16 x 1.5 | 21 | 19 | 10 | 22 | 40 | 24
TSF3M | 1MTSF30M | 18 x 1.5 | 21 | 19 | 10 | 22 | 40 | 25
TSF4M | 1MTSF40M | 20 x 1.5 | 24 | 21 | 12 | 24 | 40 | 34
TSF5M | 1MTSF50M | 22 x 1.5 | 26 | 21 | 12 | 27 | 40 | 39
Characteristics / technical specifications
- Brand: Mintor Srl
- Model: TSF
- Type: Oil filling plug with breather
- Body material: aluminium alloy (no surface treatment)
- Cover: galvanized steel
- Filter: spherical bronze internal filter (see tables for filtration degree)
- Applications: dusty environments; recommended for hydraulic units and cylinders
- Working temperature: -20°C to +140°C
- Surface treatment: anodizing available on request
- Note: not designed to operate inverted; installation/testing inverted may compromise operation
