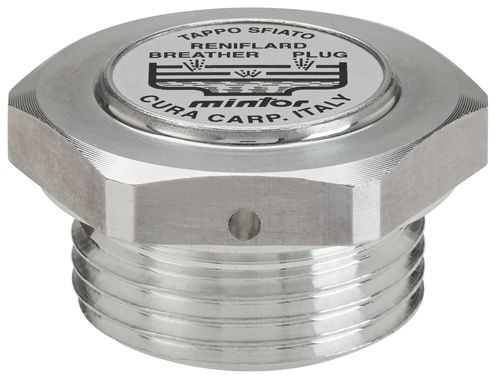

Filling plug with breather
Description
Threaded plug in aluminium alloy supplied without surface treatment, with hexagonal head. Hole for venting internal pressure with diameter approximately 2 mm to 3.5 mm (free-vented). Intended for installation on the upper part of the crankcase, away from moving parts. For applications requiring extra-tight sealing, type TSFT/N is recommended. Available on request with anodizing treatment.
Warning
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.
Technical Info - GAS ISO 228
TYPE | CODE | THREAD | t | f | e | WEIGHT (g)
TCF0G | 1GTCF00A | 1/8\" | 6.5 | 8 | 14 | 3
TCF1G | 1GTCF10A | 1/4\" | 7.5 | 8 | 17 | 6
TCF2G | 1GTCF20A | 3/8\" | 8.5 | 10 | 22 | 11
TCF3G | 1GTCF30A | 1/2\" | 8.5 | 10 | 27 | 17
TCF4G | 1GTCF40A | 3/4\" | 9.5 | 12 | 32 | 25
TCF5G | 1GTCF50A | 1\" | 9.5 | 14 | 40 | 43
TCF6G | 1GTCF60A | 1\" 1/4 | 11.5 | 15 | 50 | 82
TCF7G | 1GTCF70A | 1\" 1/2 | 11.5 | 15 | 55 | 112
TCF8G | 1GTCF80A | 2\" | 12 | 17 | 70 | 225
Technical Info - MB METRIC
TYPE | CODE | THREAD | t | f | e | WEIGHT (g)
TCF0M | 1MTCF00A | 10 x 1 | 6.5 | 8 | 14 | 3
TCF1M | 1MTCF10A | 14 x 1.5 | 7.5 | 8 | 17 | 6
TCF2M | 1MTCF20A | 16 x 1.5 | 7 | 10 | 22 | 10
TCF3M | 1MTCF30A | 18 x 1.5 | 8.5 | 10 | 22 | 11
TCF4M | 1MTCF40A | 20 x 1.5 | 8.5 | 10 | 24 |
TCF5M | 1MTCF50A | 22 x 1.5 | 8.5 | 10 | 27 | 19
Characteristics / technical specifications
Filling plug with breather
Description
Threaded plug in aluminium alloy supplied without surface treatment, with hexagonal head. Hole for venting internal pressure with diameter approximately 2 mm to 3.5 mm (free-vented). Intended for installation on the upper part of the crankcase, away from moving parts. For applications requiring extra-tight sealing, type TSFT/N is recommended. Available on request with anodizing treatment.
Warning
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.
Technical Info - GAS ISO 228
TYPE | CODE | THREAD | t | f | e | WEIGHT (g)
TCF0G | 1GTCF00A | 1/8\" | 6.5 | 8 | 14 | 3
TCF1G | 1GTCF10A | 1/4\" | 7.5 | 8 | 17 | 6
TCF2G | 1GTCF20A | 3/8\" | 8.5 | 10 | 22 | 11
TCF3G | 1GTCF30A | 1/2\" | 8.5 | 10 | 27 | 17
TCF4G | 1GTCF40A | 3/4\" | 9.5 | 12 | 32 | 25
TCF5G | 1GTCF50A | 1\" | 9.5 | 14 | 40 | 43
TCF6G | 1GTCF60A | 1\" 1/4 | 11.5 | 15 | 50 | 82
TCF7G | 1GTCF70A | 1\" 1/2 | 11.5 | 15 | 55 | 112
TCF8G | 1GTCF80A | 2\" | 12 | 17 | 70 | 225
Technical Info - MB METRIC
TYPE | CODE | THREAD | t | f | e | WEIGHT (g)
TCF0M | 1MTCF00A | 10 x 1 | 6.5 | 8 | 14 | 3
TCF1M | 1MTCF10A | 14 x 1.5 | 7.5 | 8 | 17 | 6
TCF2M | 1MTCF20A | 16 x 1.5 | 7 | 10 | 22 | 10
TCF3M | 1MTCF30A | 18 x 1.5 | 8.5 | 10 | 22 | 11
TCF4M | 1MTCF40A | 20 x 1.5 | 8.5 | 10 | 24 |
TCF5M | 1MTCF50A | 22 x 1.5 | 8.5 | 10 | 27 | 19
Characteristics / technical specifications
- Model: TCF
- Brand: Mintor Srl
- Material: aluminium alloy (supplied without surface treatment by default)
- Head: hexagonal head
- Venting: hole for venting internal pressure; diameter approximately 2 mm to 3.5 mm (free-vented)
- Application: installation only on the upper part of the crankcase, away from moving parts
- Optional finish: anodizing available on request
- Not suitable for inverted operation: do not install or test inverted
- Recommended alternative for extra-tight sealing: type TSFT/N
- Standards / sizes: GAS ISO 228 (TCF0G–TCF8G) and MB METRIC (TCF0M–TCF5M) — codes, threads and weights as listed above
